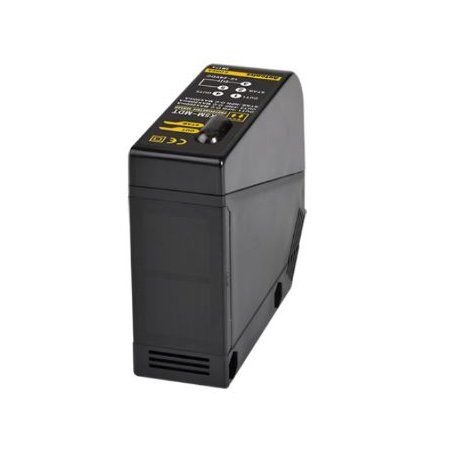

Sensor Fotoelectrico difuso reflectivo con distancia de deteccion de 700 milimetros; alimentacion de 24-240VCC/24-240VCA modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
Sensor, Photo, Through Beam, 15M Sensing Distance, Light & Dark On, Relay Output, 24-240 VAC & VDC
| Sensing type | Through-beam type |
|---|---|
| Sensing distance | 15m |
| Sensing target | Opaque material of min. Ø15mm |
| Light source | Infrared LED(850nm) |
| Response time | Max. 20ms |
| Power supply | 24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 3VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | Relay |
| Connection type | Terminal block type |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP66 |
| Approval |  |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | Approx. 225g |
Sensor Fotoelectrico difuso reflectivo con distancia de deteccion de 700 milimetros; alimentacion de 24-240VCC/24-240VCA modo de operacion Light ON Dark ON seleccionable por interruptor, salida NPN y proteccion IP66
