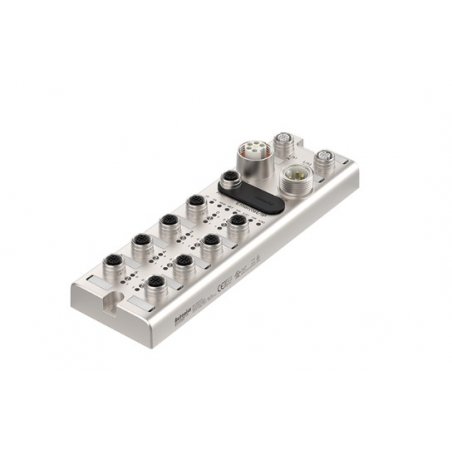

ADIO-EI-MA08AP-ILM Módulo PNPV1 2 A/Port Ethernet/IP power supply port 7/8 inch 5-Pin
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
| Upper level comm. protocol | Ethernet/IP |
|---|---|
| Lower level comm. protocol | IO-Link ver. 1.1 (port class: Class A) |
| I/O Number of ports | 8-port |
| I/O port connector type | M12 |
| I/O specification | Digital Input 16CH, Digital Output 8CH |
| Power supply port | 7/8 inch, 5-Pin |
| Input/Output | PNP |
| Supply voltage | 18-30 VDC  |
| Rated voltage | 24VDC |
| Power consumption | 2.4 W (≤216 W) |
| Supplying current per port | ≤ 2 A/Port |
| Sensor current (US) | ≤ 9 A |
| Dimension | W 66 × H 215 × D 38 mm |
| Material | Zinc Die casting |
| Unit weight (packaged weight) | ≈ 700 g (≈ 900 g) |
| Ambient temperature | -5 to 70℃, Storage: -25 to 70℃ (no freezing or condensation) |
| Ambient humidity | 35 to 75%RH (no freezing or condensation) |
| Protection structure | IP67(IEC standard) |
ADIO-EI-MA08AP-ILM Módulo PNPV1 2 A/Port Ethernet/IP power supply port 7/8 inch 5-Pin
