IMAGEN DE REFERENCIA

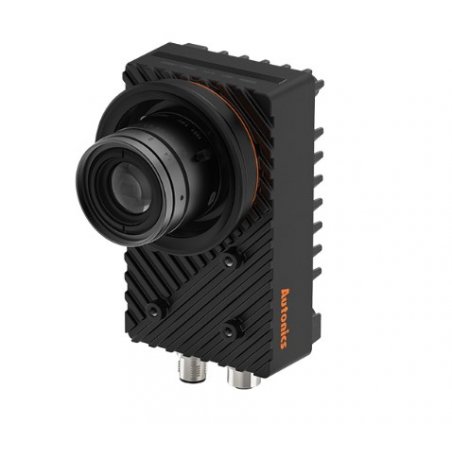

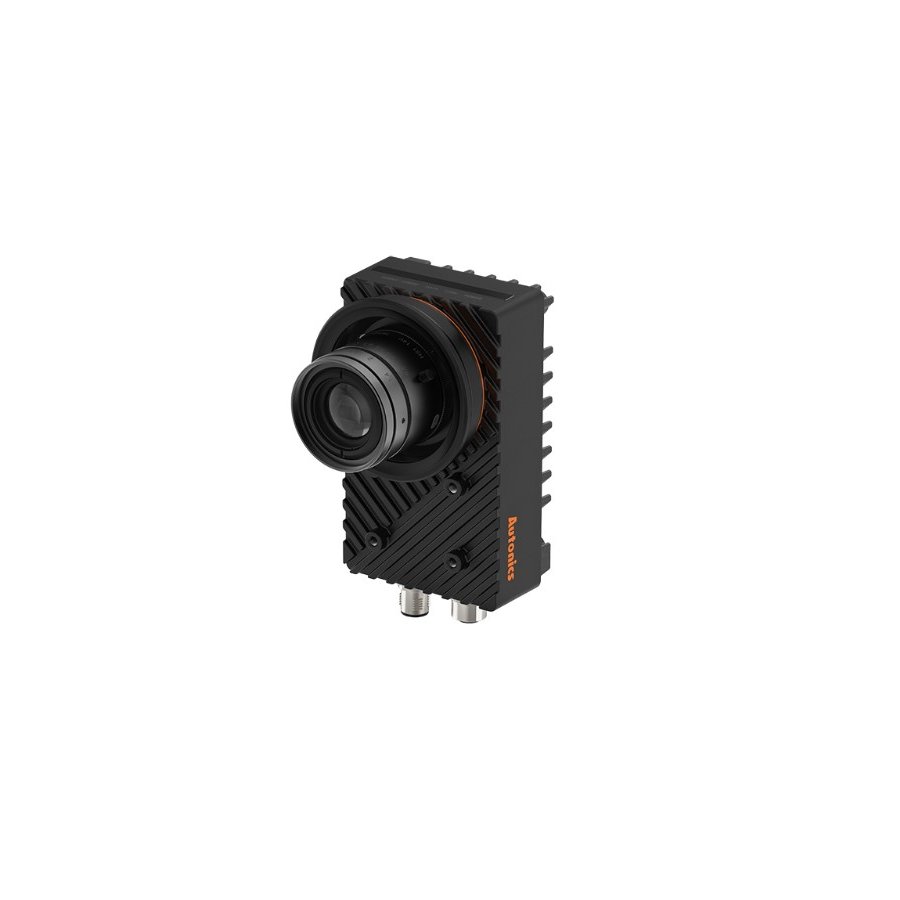

VC-M50T-CE SMART CAMERAS VC-M 8 bit 1 inch mono CMOS

0 Reseñas(s)

Referencia VC-M50T-CE

Image element : 1 inch mono CMOS
Resolution(Pixel) : 5 MP (2,560×2,048)
Frame per second : 16 fps
Bit Depth : 8 bit (256 gray level)
Shutter : Global shutter
Lens type : C-Mount
Inspection_Work group : 64 (simultaneous inspection: 32)
Material : Die-cast Aluminum Housing

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

VC-M50T-CE

Cotizar

Descripción
Reseñas (0)

Image element	1 inch mono CMOS
Resolution(Pixel)	5 MP (2,560×2,048)
Frame per second	16 fps
Bit Depth	8 bit (256 gray level)
Shutter	Global shutter
Exposure time	3 μs to 3 sec
Lens type	C-Mount
eMMC	8 GB
DDR4	2 GB(LPDDR4), 512 MB(DDR4)
Inspection_Work group	64 (simultaneous inspection: 32)
Trigger mode	Continuous, External Trigger, Manual, Ethernet, RS232
Communication	Ethernet (TCP/IP & Modbus) RS232C
Output_FTP transmission	Possible
Indicator	Power, LINK, DATA, USER 1, USER 2
Unit weight (packaged weight)	≈ 600 g (≈ 780 g)
Power supply	24VDC ±10%
Current consumption	1A
Input_Signal	Rated input 24VDC (±10%)
Output_Signal	NPN-PNP open collector output setting (software)
HS Out 0	Strobe OUT
HS Out 1	Inspection complete, Inspection result output (PASS / FAIL), Alarm, Camera work
Load voltage	24VDC
Load current	Max. 100mA
Residual voltage	≤2.5 VDC
Protection circuit	Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit
Vibration	1.5mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	300m/s² (approx. 30G) in each X, Y, Z direction for 3 times
Environment_Ambient temperature	0 to 45℃, storage: -30 to 80℃
Environment_Ambient humidity	0 to 95%RH, storage: 0 to 95%RH
Protection structure	IP67 (IEC standard When mounting waterproof lens cover)
Connection	Connector type
Connector type	Power I/O: M12 8-pin, Ethernet: M12 8-pin / RJ45 (cable tightening torque: 0.4 N m)
Material	Die-cast Aluminum Housing
Product Components	Ethernet connector Cap (screw plug - waterproof) × 1 (tightening torque: 0.4 N m)
