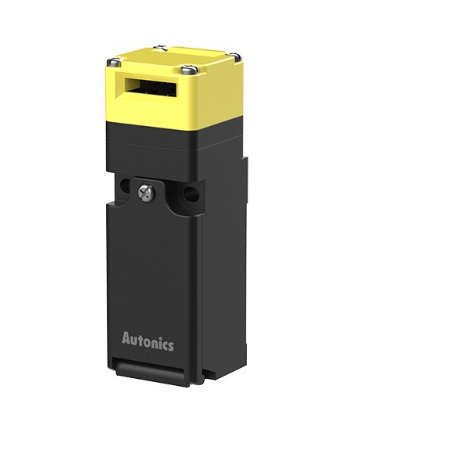

Interruptor de seguridad para puerta, cuerpo plástico; tipo de contacto 2 N.C. conexión de salida 1 especificaciones de conexión de salida hilo M20
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
| Rated load voltage & current | Resistive load : 6A/250VAC~, 0.6A/250VDC Inductive load : AC-15 3A/240VAC~,DC-13 0.27A/250VDC |
|---|---|
| Directing opening force | Min. 80N |
| Directing opening distance | Min. 10mm |
| Operating speed | 0.05 to 1m/s |
| Operating frequency | Max. 20/min |
| Applicable cable | AWG 20-18 (0.5 to 0.75mm²) |
| Insulation resistance | 100MΩ or more (500VDC megger basis) |
| Contact resistance | Max. 50mΩ (initial value) |
| Dielectric strength_Between the terminals | 2kV |
| Dielectric strength_Between each terminal and non-live part | 5kV |
| Conditional short circuit current | 100A |
| Life cycle_Electrical | Min. 100,000 operations (240VAC~ 6A) |
| Life cycle_Mechanical | Min. 1,000,000 operations |
| Vibration_Malfunction | 0.75mm amplitude at frequency of 10 to 55Hz (for 1 min) in each X,Y,Z direction for 10 min |
| Shock | 1,000m/s² (approx. 100G) in each X, Y, Z direction for 3 times |
| Shock_Malfunction | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -30 to 70℃, storage: -40 to 70℃ |
| Environment_Ambient humidity | 35 to 90%RH, storage : 35 to 90%RH |
| Protection structure | IP67(IEC standerd, except head) |
| Connection Type | M20 Connector cable |
| Material | Head: polyamide 6, case: polyamide 6, operation key: stainless steel 304 |
| Sold separately | Operation key |
| Weight | Approx. 120g(approx. 80g) |
Interruptor de seguridad para puerta, cuerpo plástico; tipo de contacto 2 N.C. conexión de salida 1 especificaciones de conexión de salida hilo M20
