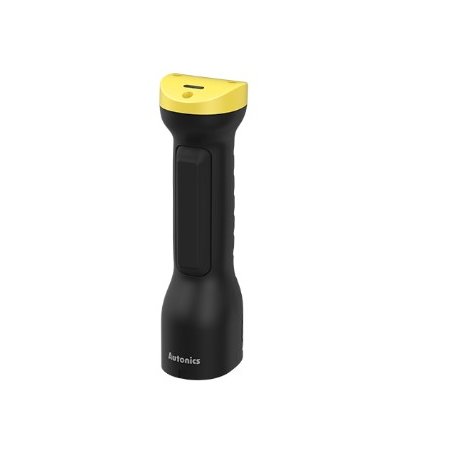

Interruptor de tres posiciones de acción rápida para manos.
)
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
| Rated Insulation Voltage | 250 VAC~ |
|---|---|
| Rated through current | 2.5A |
| Rated inductive load | AC-15 (0.75 A / 240 VAC~), DC-13 (0.55 A / 125 VDC) |
| Rated resistive load | AC-15 (0.75 A / 240 VAC~), DC-13 (0.55 A / 125 VDC) |
| Controller strength | Operation direction: 200 N, for 1 min |
| Operating frequency | Electrical: ≤ 20 / min, Machanical: ≤ 20 / min |
| Dielectric strength | Between terminals of same polarity, between terminals of different polarity, between terminal and non-live part : 2,500 VAC~ 50 / 60 Hz for 1 min (impulse dielectric strenght) |
| Life cycle_Electrical | ≥ 100,000 operations (rated load) |
| Life cycle_Mechanical | OFF → ON → OFF: ≥ 100,000 opertions / OFF → ON: ≥ 1,000,000 operations |
| Conditional short circuit current | 100A |
| Min. applied load | DC24 V 4 mA |
| Directing opening force | 30 N ± 10 |
| Directing opening distance | 4.8 mm ± 0.5 |
| Insulation resistance | ≥ 100 MΩ (500 VDC megger) |
| Vibration_Malfunction | 1.5mm double amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 10 minutes |
| Shock_Malfunction | 150 m/s² (≈ 15 G) in each X, Y, Z direction for 3 times |
| Environment_Ambient temperature | -10 to 55 ℃, storage: -25 to 65 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Insulation class | Class ll (double insulation) |
| Indicator | Enable operation indicator (green) |
| Protection structure | IP66 (IEC standard) |
| Applicable cable | AWG 20-18 (0.5 to 0.75mm²) |
| Connection Type | M20 connector cable grand |
| Material | Cover: PA66, button: PC, rubber grip: Silicone |
| International standards | IEC 60947-5-1, IEC 60947-5-8, UL 60947-5-1 |
| Weight | ≈ 238 g (≈ 363 g) |
Interruptor de tres posiciones de acción rápida para manos.
)
