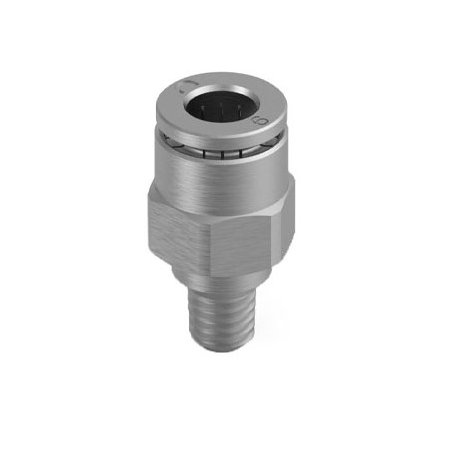

Racor super rapido para sist. HP6512 6-1/8-VNR

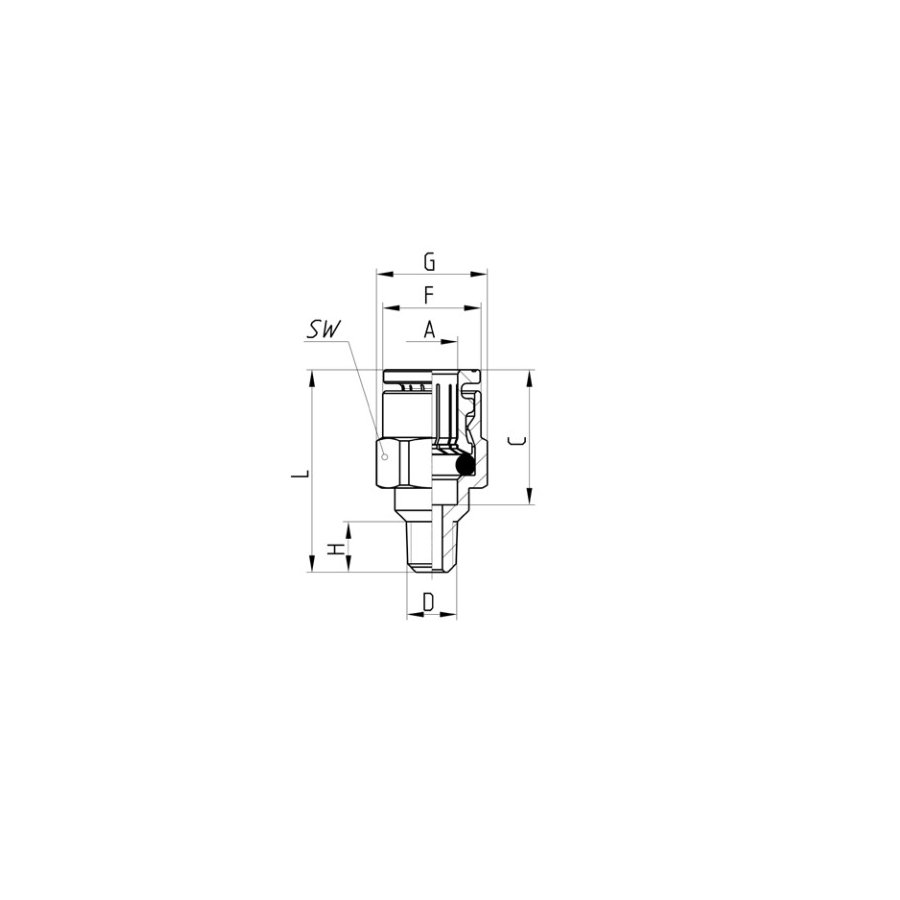

A D C F G H L SW Weight (g)
6 G1/8 16 11,7 13,5 6 27 12 21,5
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
Temperature - 30°C ÷ 80°C (see the technical data of tubing used)
Working pressure 0 ÷ 150 bar with oil and grease 0,9 ÷ 60 bar with air (see the technical data of tubing used) 3 ÷ 150 bar for VNR version (for upper pressure range contact our engineers)
Diameters ø 4 - 6 mm
Threads M5, M6x0,75, M6, M8x1, M10x1, M10, M12x1, M14x1. ISO7 (BSPT): R1/8, R1/4. ISO228 (BSPP): G1/8, G1/4
Fluid oil and grease for lubrification, compressed air
Tube to connect Oil and grease: PA 12 HL - PA 12 PHL Rigid metal pipe with smooth grooved metal end (tolerance of PA tubing in compliance to ISO14743) Compressed air: Polyammide (PA) 6 - 11 - 12, Polyurethane (PU), Polyethylene (PE), Polyester hytrel
Materials - standard models: body and collet in nickel-plated brass, O-Ring in NBR, thread seals in NBR - models with VNR: body and collet in nickel-plated brass, spring and ball in stainless steel, O-Ring in NBR
Racor super rapido para sist. HP6512 6-1/8-VNR

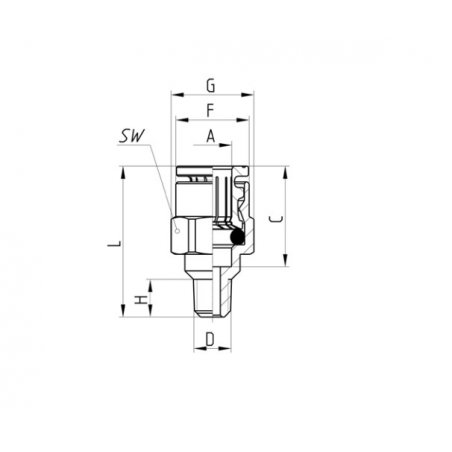

A D C F G H L SW Weight (g)
6 G1/8 16 11,7 13,5 6 27 12 21,5
