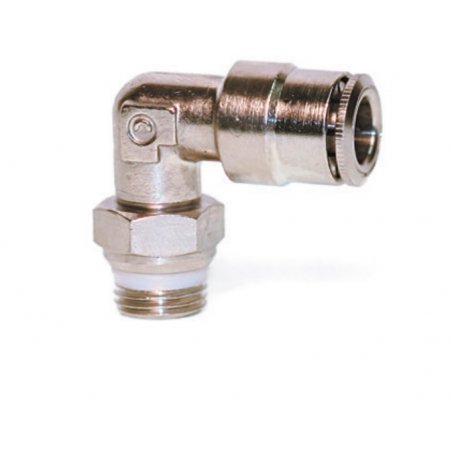

Racor super rapido codo macho P6520 06-02

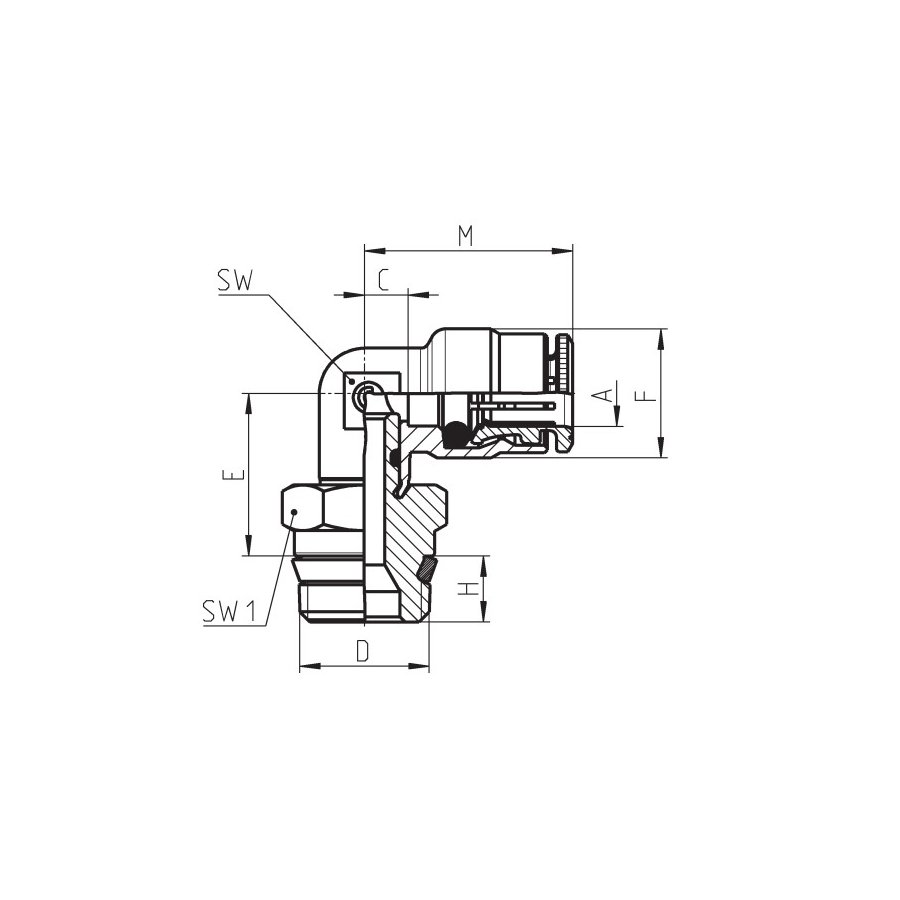

A OD D NPTF C E F H M SW SW1
3/8 1/8 0.256 0.748 0.650 0.197 1.043 0.512 0.551
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Material body and collet: nickel-plated brass, (UNI 5705 OT58) O-Ring: NBR; Viton and EPDM available on request thread seal: PTFE - NBR - PA; Loctite Vibra-Seal 516 (red)
Threads 10-32 UNF, 1/8”, 1/4”, 3/8”, 1/2” NPTF, or Pro-Fit
Pressure min -0,9 bar - max 16 bar (28” Hg vacuum to 250 psi) (see tubing)
Tube to connect Nylon 6, 11 or 12, polyethylene, PU, (Polyurethane recommended 90A durometer and above) Hytrel Polyester
Diameters Tube Diameter OD : 1/8”, 5/32”, 1/4”, 5/16”, 3/8”, 1/2”
Fluid compressed air (for other types of fluid, contact our engineers)
Temperature -20°C - 80°C , -4 F to 175 F (see data for tubing used)
