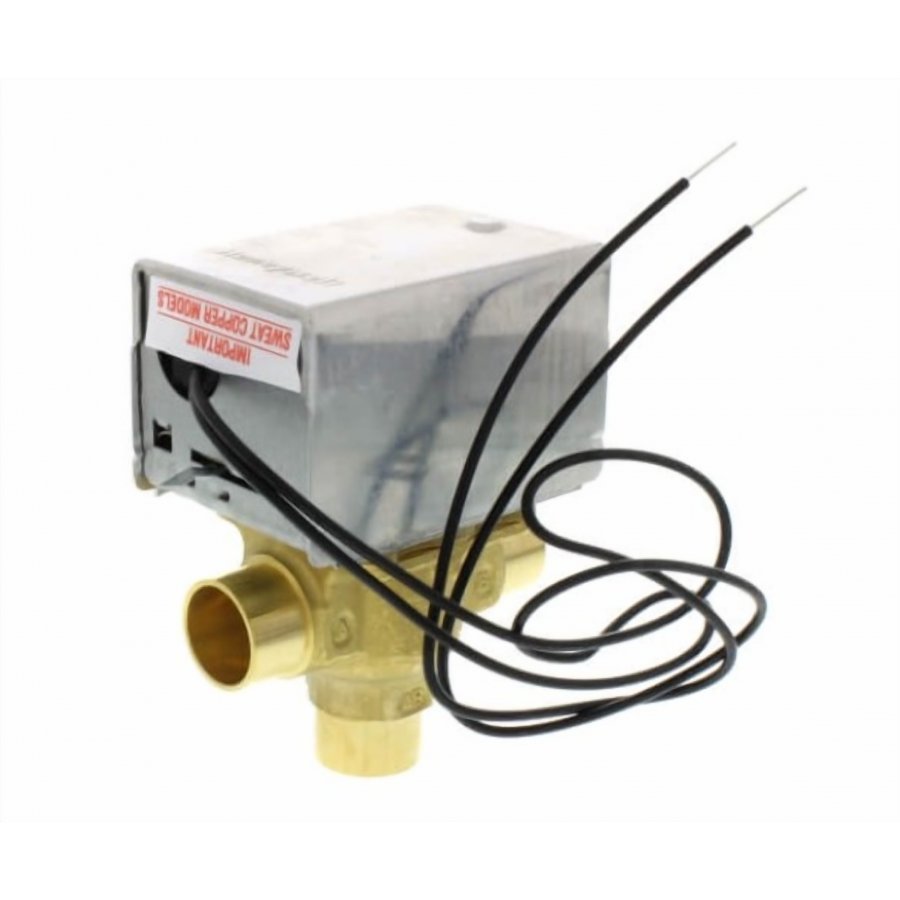

V4044A1191 Válvula motorizada de 3/4 In 3 vías de 120vac con actuador tipo on/ off con resorte y aplicación hidrónica
zoom_in

V4044A1191 Válvula motorizada de 3/4 In 3 vías de 120vac con actuador tipo on/ off con resorte y aplicación hidrónica

V4044A1191
HONEYWELL AA RESIDEO
HONEYWELL AA RESIDEO

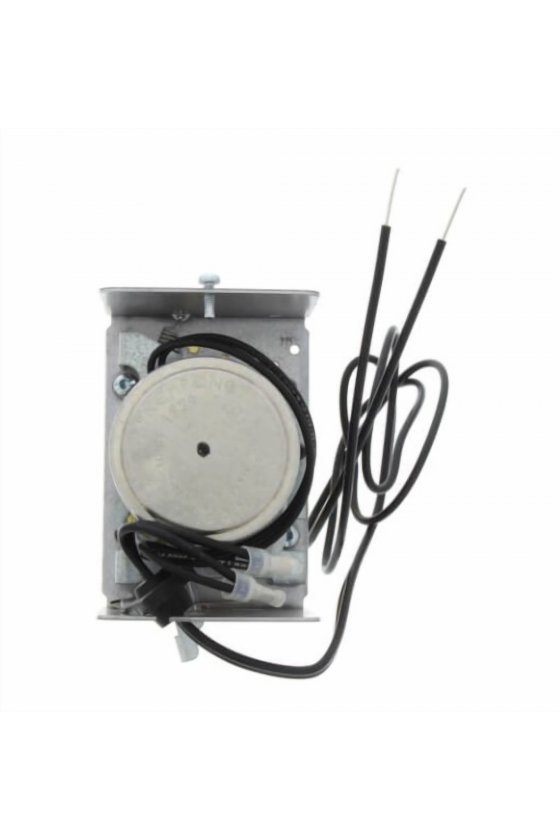

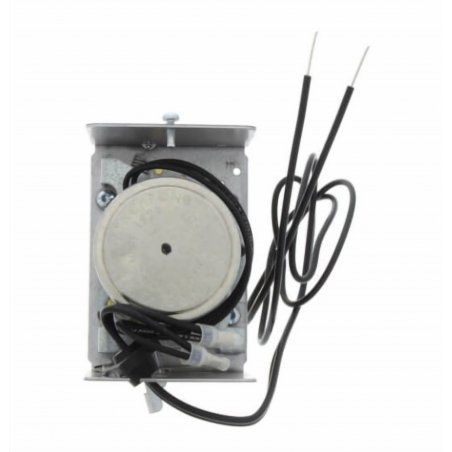

Válvula de 3 vías tipo divergente. Aplicación fan y coil de 3/4 pulgadas de diametro. Conexión soldable con actuador tipo on/ off con resorte  y aplicación hidrónica Cv 7.0. 120 VAC. 60 HZ. con apertura manual y cuerpo de bronce.

Existencia salvo previa venta: 12
Cotizar
Métodos de pago y Seguridad
Su información de pago se procesa de forma segura. No almacenamos los datos de su tarjeta de crédito ni tenemos acceso a ella..
  Política de seguridad.

El sitio cuenta con certificado de seguridad SSL.
  Política de envío

Envíos a toda la República Mexicana
  Política de devolución

Nueve días hábiles después de la facturación. Se aplican restricciones*
  Pago a meses

Paga a meses mediante tu cuenta de Mercado Pago!!

Features

  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
  • All models may be installed without disassembling the valve.
  • Compact construction for easy installation.
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
  • Motor may be replaced without removing the valve body or draining the system.
  • Suitable for heating and cooling applications.

Product Specifications

Application
Hydronic Control
Dimensions (in.)
4 13/16 in. high x 3 1/2 in. wide x 2 3/8 in. deep
Dimensions (mm)
122 mm high x 90 mm wide x 60 mm deep
Comments
Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.
Frequency
60 Hz
Approvals, Underwriters Laboratories Inc.
UL Listed: File MH11826
Approvals, Canadian Standards Association
CSA Certified
Operating Humidity Range (% RH)
5 to 95% relative humidity, non-condensing.
Voltage
120 Vac; Power Consumption--9.6 VA
Ambient Temperature Range (C)
52 C Maximum
Ambient Temperature Range (F)
125 F Maximum
Connection Type
Sweat
Electrical Connections (in.)
18 in. leads
Electrical Connections (mm)
457 mm leads
Timing
Nominal Open--30 sec
Body Pattern
Three-way, Diverting
Pipe Size (inch)
3/4 in.
Pipe Size (DN)
DN20
Current Draw
0.08A
Fluid Temperature (C)
5 C to 93 C
Fluid Temperature (F)
40 F to 200 F
Maximum Differential Pressure Ratings (Close-off) (psi)
10 psi
Maximum Differential Pressure Ratings (Close-off) (kPa)
69 kPa
Capacity (Cv)
7.0 Cv
Capacity (Kv)
6 Kv
Valve Action
Spring Return to port A
Valve Type
Zone Valve
Materials (Body)
Brass
Materials (Seat)
Brass
Materials (Stem)
Stainless Steel
Actuation
Two position
De-energized Position
Port A Normally Closed
Static Pressure Rating (psi)
125 psi
Static Pressure Rating (kPa)
862 kPa
Materials (Plug/Ball/Disc)
Buna-N (NBR) Rubber Ball
Materials (Packing)
EPDM rubber
Manual Opener
Yes
V4044A1191
