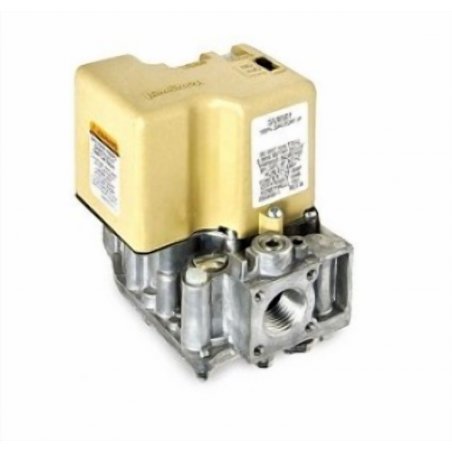

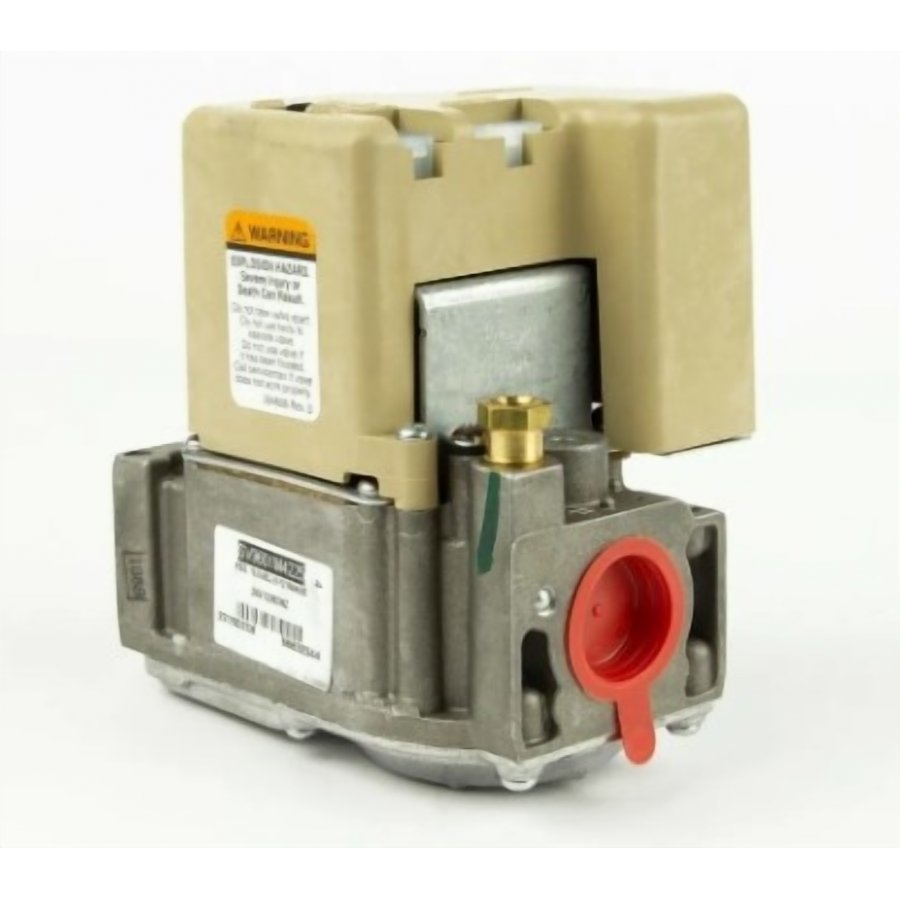

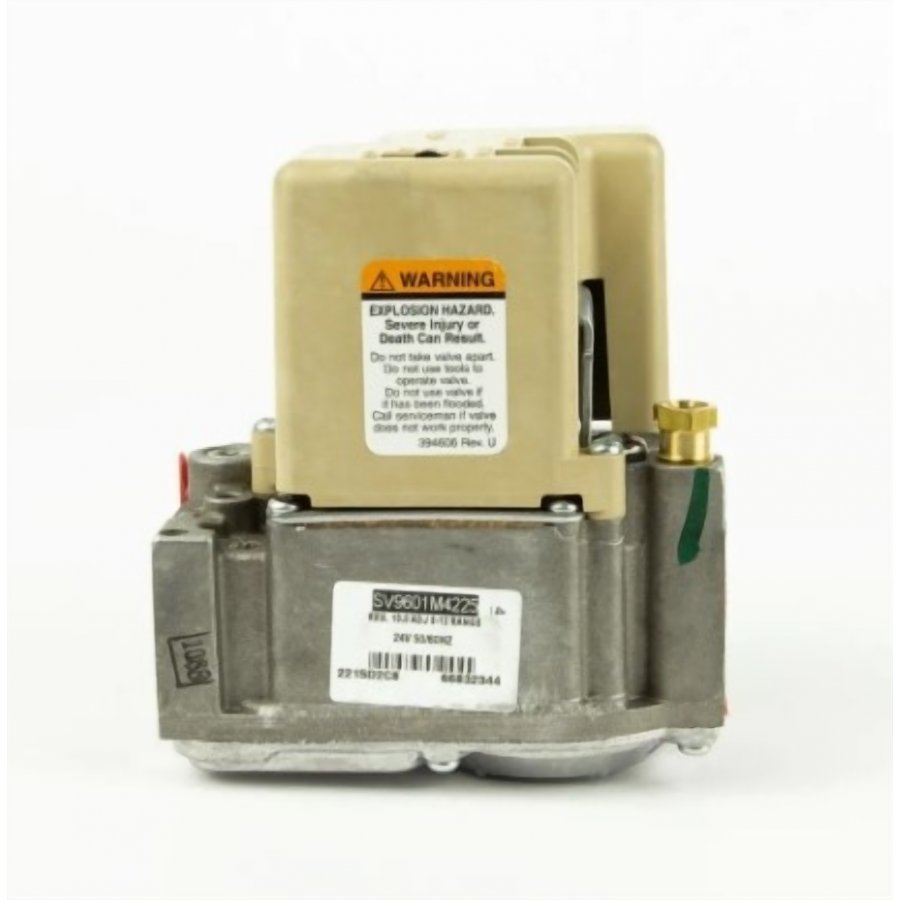

SV9601M4225/B Válvula de 3/4 para gas LP conexión interior 3/4 x 3/4 NPT 24 VAC 60 HZ

Product Specifications

Dimensions (in.)

3.2 in. wide x 4.9 in. high x 4.1 in.long

Dimensions (mm)

81 mm wide x124 mm high x 104 mm long.

Item Type

Product

Mounting

0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.

Electrical Ratings

24 Vac

Frequency

50 Hz; 60 Hz

Voltage

Call for heat--24 Vac, 60 Hz

Flame Failure Response Time (sec)

1.6 sec @ 3 µA

Ambient Temperature Range (C)

-40 C to +79 C

Ambient Temperature Range (F)

-40 F to +175 F

Ignition System Type

Intermittent Hot Surface Pilot Ignition

Ignition Sequence

Intermittent Pilot

Type of Gas

LP

Flame Sense

Two Rod

Ignition Source

Pilot

Ignition Trials To Lockout

continuous retry

Ignition Trial Time (sec)

90 sec

Body Pattern

Straight-through

Opening Characteristics

Standard

Pressure Regulator Setting (psi)

10.0 in. wc

Pressure Regulator Setting (kPa)

2.49 kPa

Inlet/Outlet Size (in.)

3/4 in. NPT x 3/4 in. NPT.

Capacity (ft³/hr)

Maximum at 1 in. P.D.--300 ft³/hr; Maximum--415 ft³/hr; Minimum--30 ft³/hr

Capacity (m³/hr)

Maximum at 1 in. P.D.--8.5 m³/hr; Maximum--11.8 m³/hr; Minimum--0.8 m³/hr

Pressure Tapping

1/8 in. - NPT
