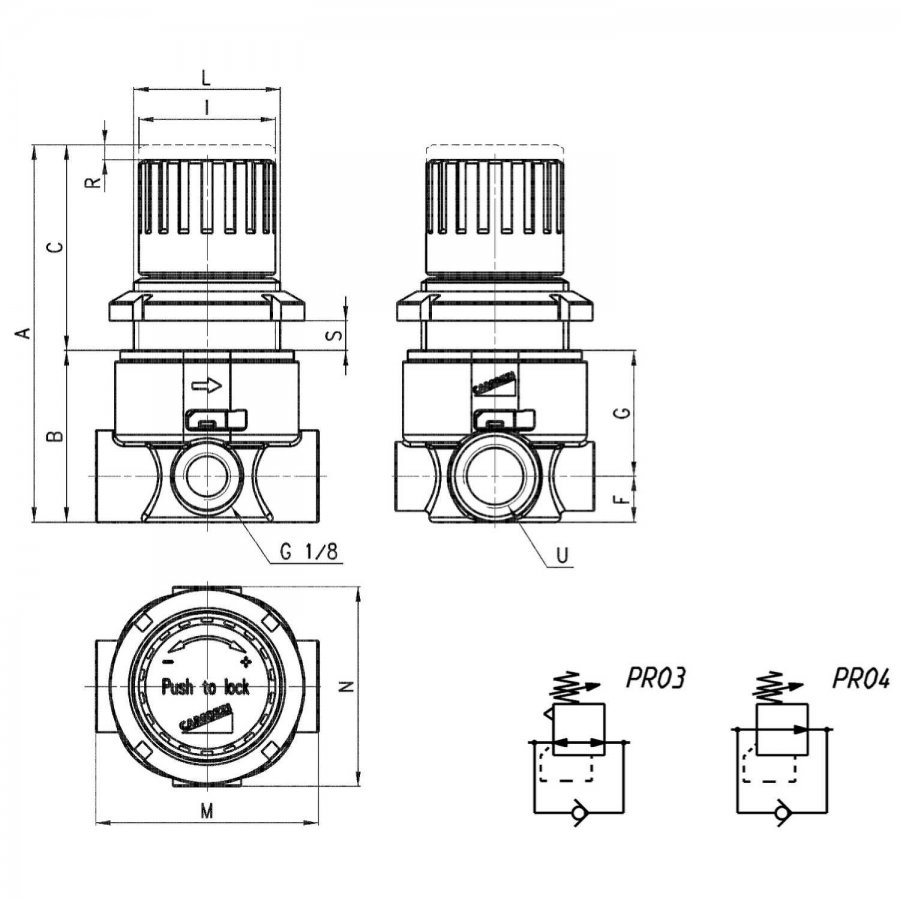

| Mod. | A | B | C | F | G | I | L | M | N | R | S | U |
| T108-R00 | 77 | 35 | 42 | 9.5 | 25.5 | 28 | M30X1.5 | 46 | 41 | 3 | 7 | G1/8 |
| Construction | piston |
| Materials | technopolymer body and piston, stainless steel spring, brass inserts, NBR O-ring and poppet |
| Ports | G1/8 - G1/4 |
| Weight | g 95 |
| Pressure gauge ports | G1/8 |
| Mounting | in-line or panel mounting (in any position) |
| Operating temperature | -5°C ÷ 50°C (with the dew point of the fluid lower than 2°C at the min. working temperature) |
| Inlet pressure | 0 ÷ 12 bar |
| Outlet pressure | 0.5 ÷ 10 bar (standard) 0 ÷ 2 bar 0 ÷ 4 bar 0.5 ÷ 7 bar |
| Nominal flow | see FLOW DIAGRAMS on the following pages |
| Secondary pressure relieving | with relieving (standard) without relieving (all regulators are provided with high relief flow VS function) |
| fluid | compressed air |
