QXT2A010A010 CILINDRO VASTAGO PARALELOS QX

Referencia QXT2A010A010

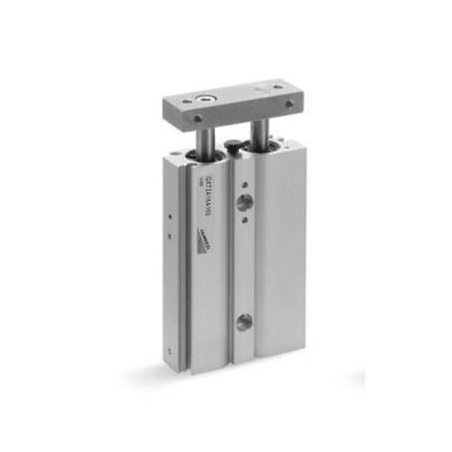

CILINDRO VASTAGO PARALELOS QX

QXT2A010A010

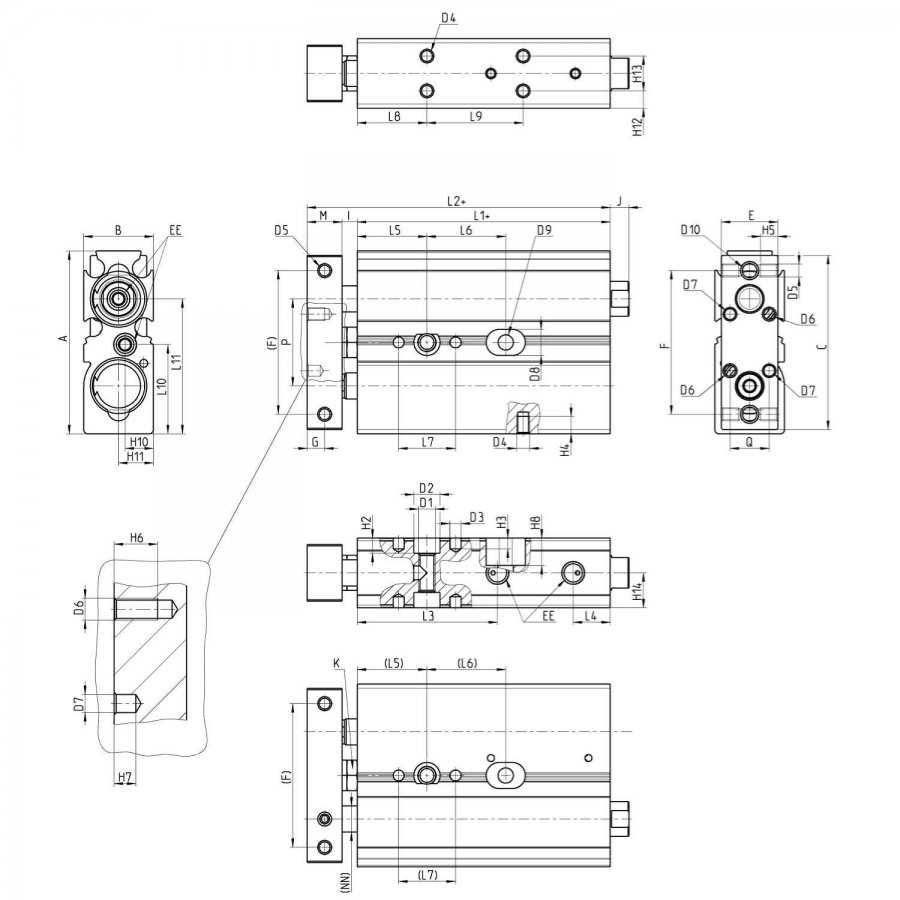

Dimensions for Series QX with single flange

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Ø	A	B	C	E	F	G	I	M	Q	R	L1+	L2++	L3	L4	L5	L6	L7	L8	L9	L10	L11	H2	H3	H4	H5	H6	H7	H8	H10	H11	H12	H13	H14	D1	D2	D3	D4	D5	D6	D7	D8	D9	D10	NN	EE	J	K	P
Ø10	42	16	40	13	33	4	3,5	8	9	13	48	59,5	32,1	8,5	16	18	13	16	22	20,5	31	6,3	2,5	4,0	6,5	8,0	3,0	6,3	6,5	8,0	4,0	8,0	8,0	M4	6,0	2,5	M3	M3	M3	2,5	6,0	3,5	M4	6	M5	4,3	7	20

Series general data

Type of construction	compact, non magnetic QXT = sintered bronze bushes - QXB = linear ball bearings
Operation	double-acting
Materials	body and flange = anodized AL QXT piston rod = stainless steel AISI 303 - QXB piston rod = hardened steel C50 seals = PU
Mounting method	by means of threaded holes
Strokes	from 10 to 100
Operating temperature	0° ÷ 80°C (with dry air - 20°C)
Operating speed	50 ÷ 500 mm/s
Operating pressure	1 ÷ 10 bar
Fluid	clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
