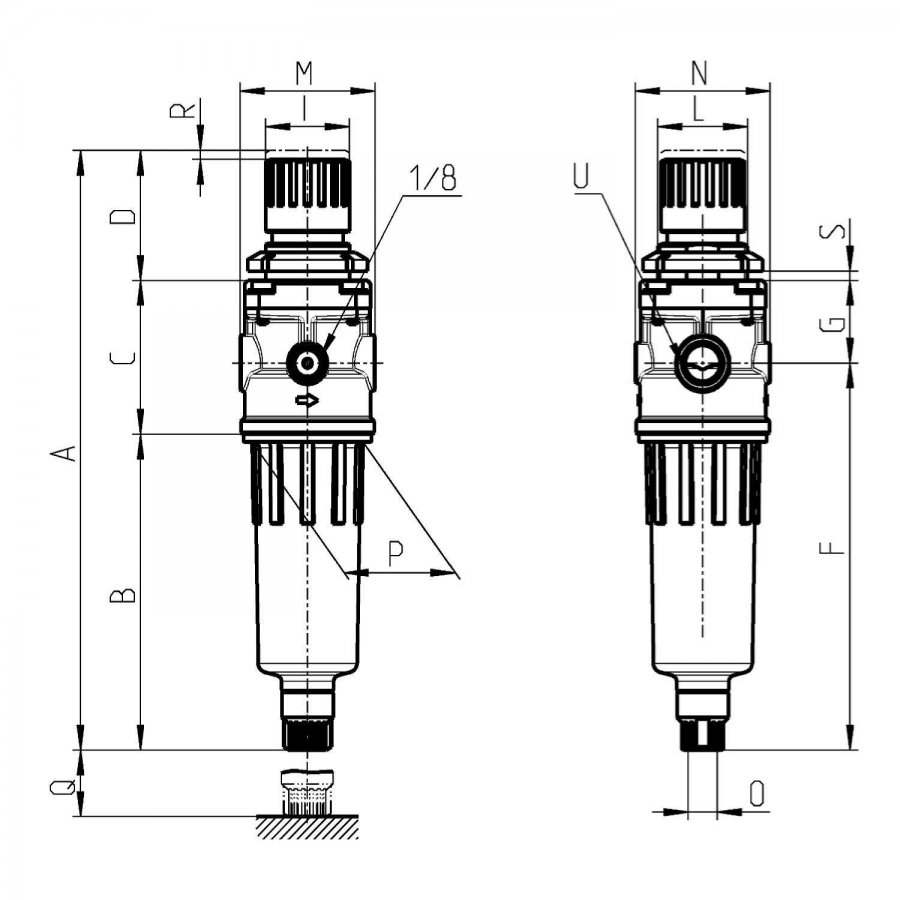

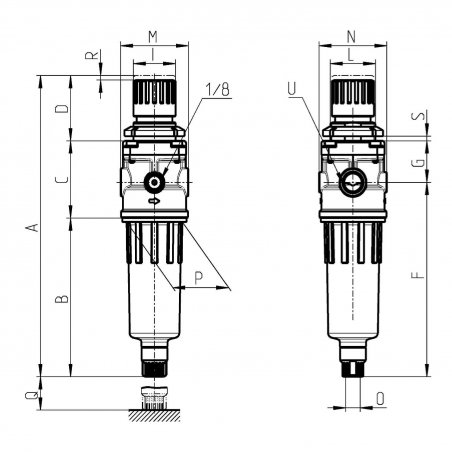

| Mod. | A | B | C | D | F | G | I | L | M | N | O | P | Q | R | S | U |
| N204-D00 | 191 | 102 | 50 | 39 | 125 | 27 | 28 | М30x1,5 | 45 | 45 | G1/8 | 38 | 40 | 3 | 0 ÷ 6 | G1/4 |
| Construction | HDPE and coalescing filtering element |
| Materials | brass body and poppet stainless steel spring NBR O-ring HDPE filtering element transparent PA12 or nickel-plated bowl others: PA |
| Ports | G1/8 - G1/4 |
| Max. condensate capacity | 11 cm³ (bowl size = 1) 28 cm³ (bowl size = 2) |
| Weight | 0.370 Kg |
| Pressure gauge ports | G1/8 |
| Mounting | vertical, in-line |
| Operating temperature | -5°C ÷ 50°C a 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
| Quality of delivered air according to ISO 8573-1 2010 | Class 7.8.4 with 25 µm filtering element Class 6.8.4 with 5 µm filtering element |
| Draining of condensate | see the coding example |
| Inlet pressure | with standard drain and protected depressurisation 0.3 ÷ 16 bar |
| Outlet pressure | with depressurisation drain 0.3 ÷ 10 bar |
| Nominal flow | see FLOW DIAGRAMS on the following pages |
| Secondary pressure relieving | with relieving (standard) without relieving |
| Fluid | compressed air |
