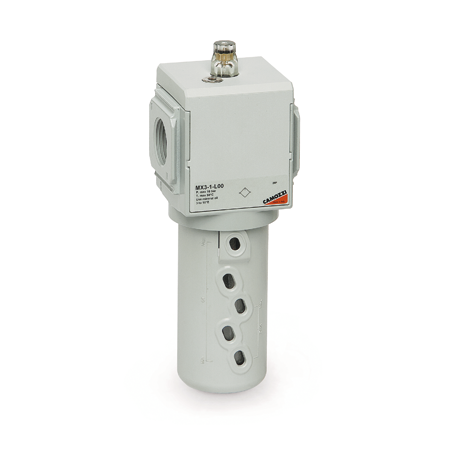

MX3-1-L00 LUBRICADOR 1PUL SERIE MX

Referencia MX3-1-L00

LUBRICADOR 3/4" SERIE MX

MX3-1-L00

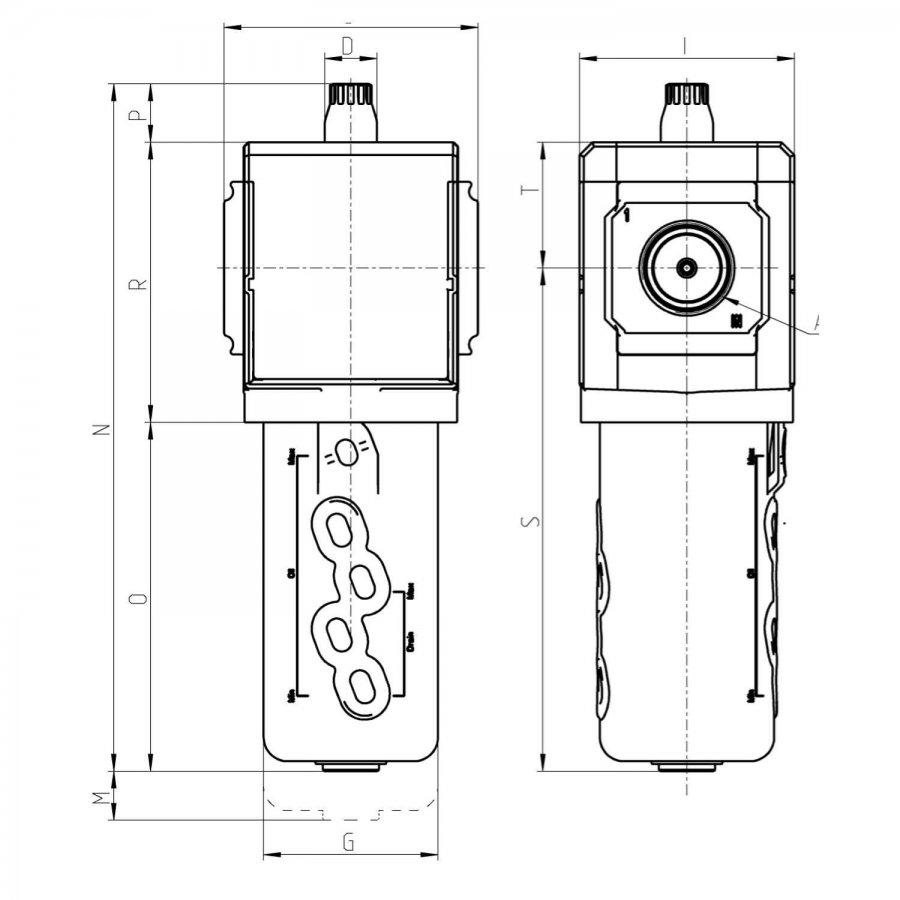

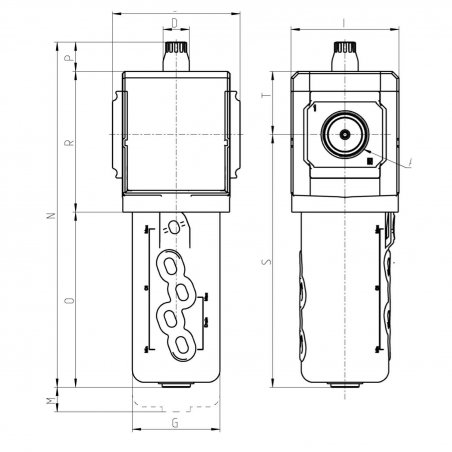

Lubricators Series MX - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.	A	C	D	G	I	M	N	O	P	R	S	T	Weight (Kg)
MX3-1-L00	G1	89.5	18.5	61.5	76	100	243	123	21	99	178	44.5	0.8

Series general data

Construction	modular, compact
Materials	see TABLE OF MATERIALS on the following page
Ports	MX2: G3/8 - G1/2 - G3/4 MX3: G3/4 - G1
Oil capacity	MX2: 118 cm³ MX3: 170 cm³
Oil refilling	even during use
Mounting	vertical in-line wall-mounting (by means of clamps)
Operating temperature	-5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Oil for lubrication	use ISO VG32 oils. Once applied, the lubrication should never be interrupted.
Operating pressure	0 ÷ 16 bar
Min. air consumption for lubrication at 1 bar	MX2: 17 Nl/min MX3: 50 Nl/min
Min. air consumption for lubrication at 6 bar	MX2: 38 Nl/min MX3: 90 Nl/min
Nominal flow	see FLOW DIAGRAMS on the following pages
