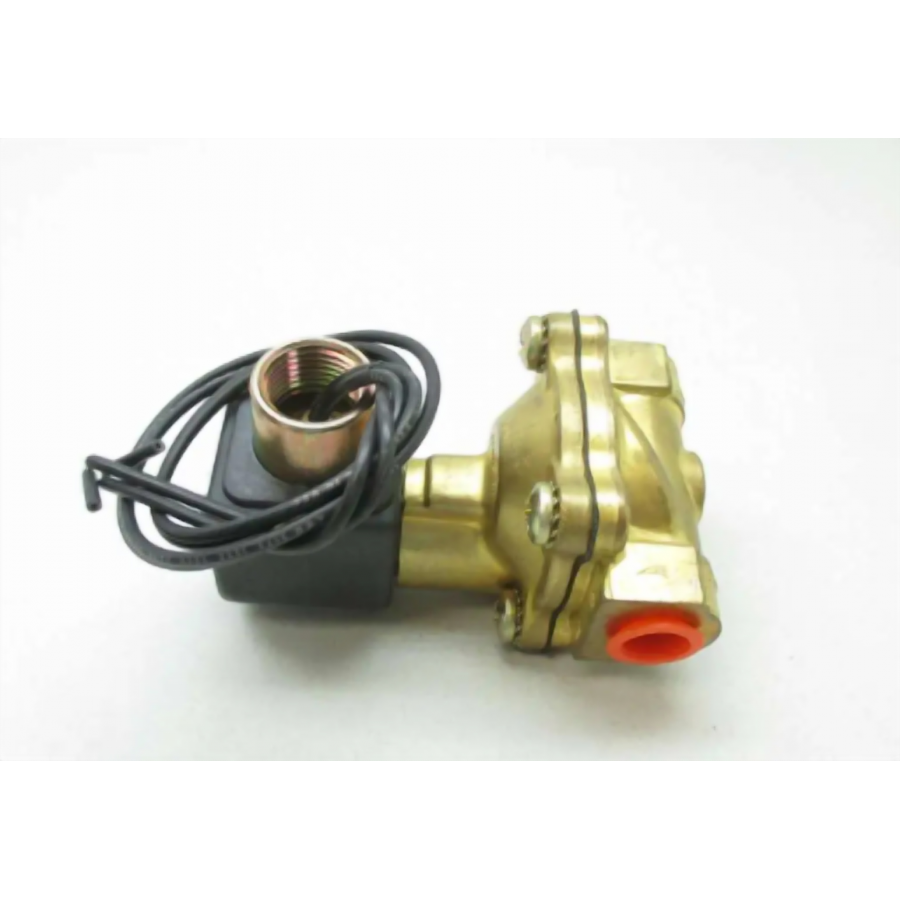

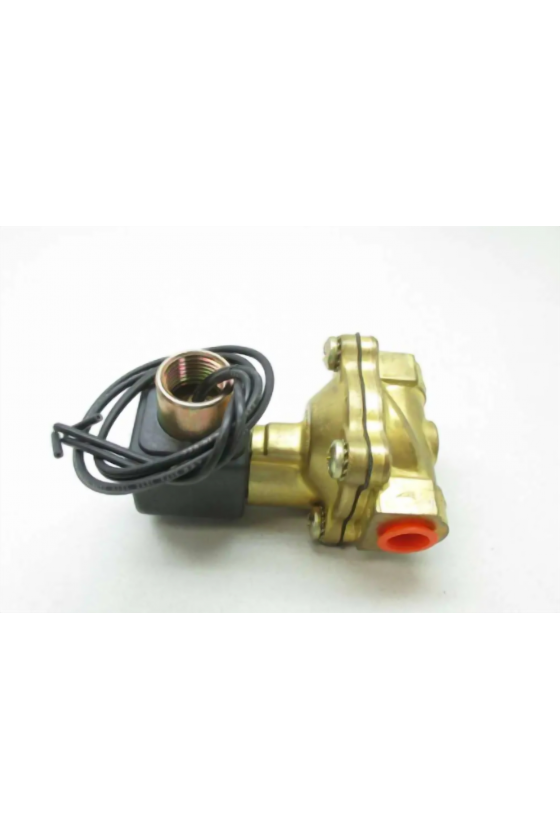

73218BN64ES0 Válvula de 2 vías normalmente cerrado de latón de NPT de 1" con orificio de 1 1/16

Referencia 73218BN64ES0

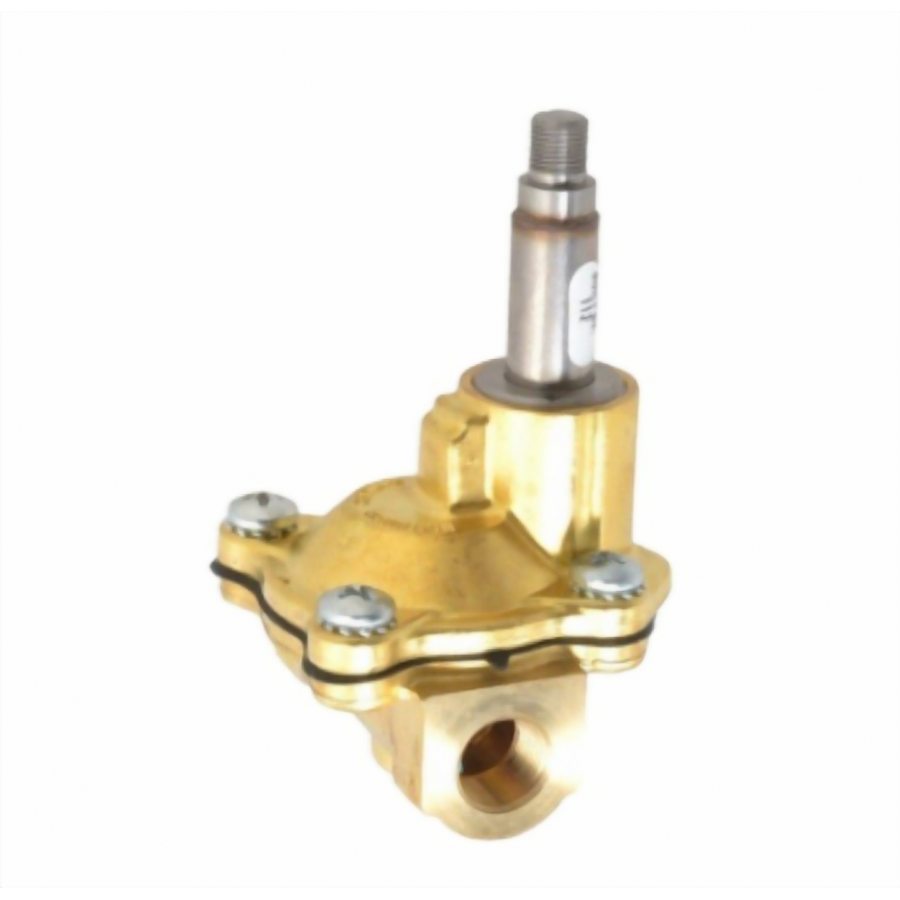

* Bobina y/o accesorios no incluidos

Válvula de 2 vías normalmente cerrado de latón de NPT de 1" con orificio de 1 1/16 5-50psi 297 grados clase f para vapor a presión con suministro de piloto interno operado por piloto.
FICHA TECNICA

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Cotizar

Descripción
Reseñas (0)

Port Size NPT	Orifice Size in.	Flow Factor Cv	Operating Pressure Differential (MOPD) PSI			Watt	Max. Media Temp. °F	Seal	Pressure Vessel Number	Reference
			Min.	Hot Water	Steam					Coil	Valve
1	1 1/16	13.50	5	-	50	10	297	EPDM	73218BN64ES0	7	D16

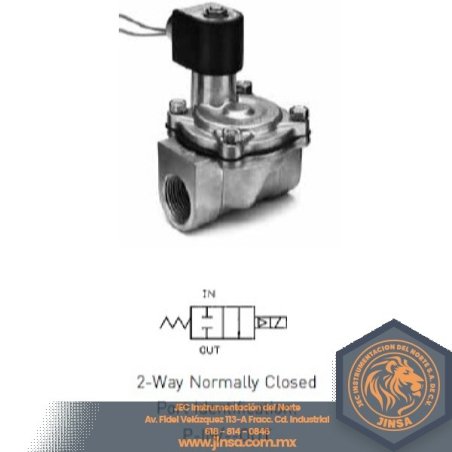

2-Way Hot Water and Steam Valve are specifically designed to withstand harsh
application conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valve should be mounted with solenoid coil vertical and upright

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard Valve with NEMA 4X orexplosion proof solenoid enclosuresare UL Listed and CSA Certified.For additional details, consult factory.

Maximum Ambient Temperature

150°F
