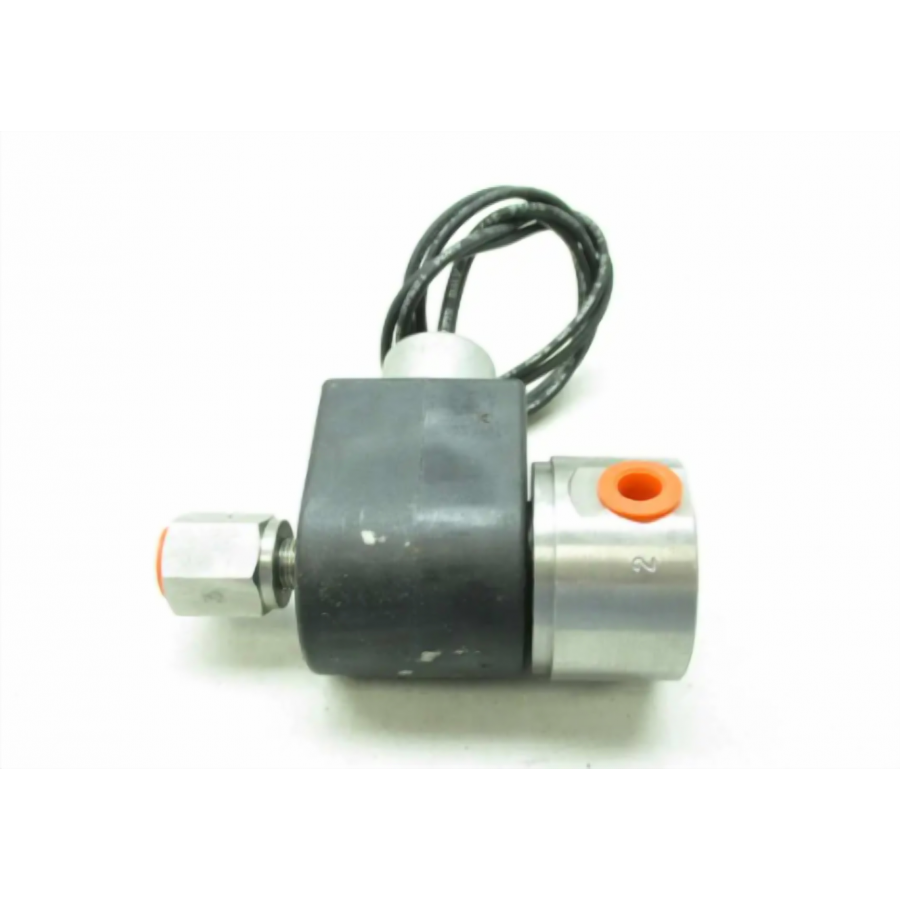

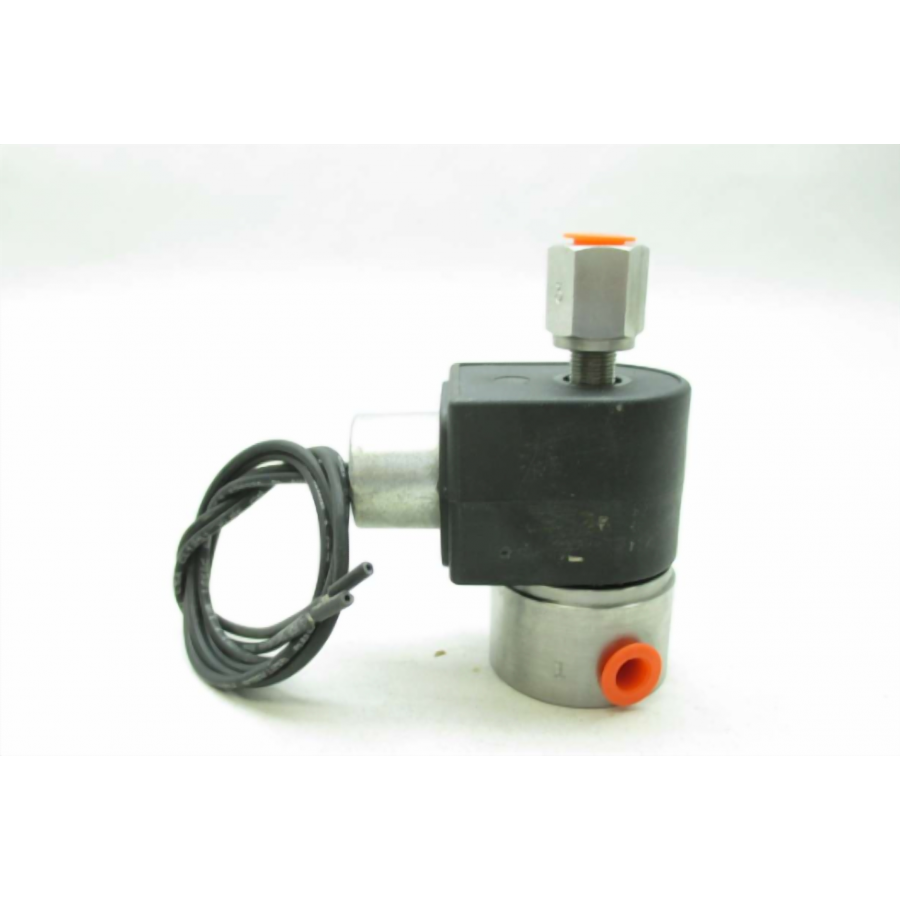

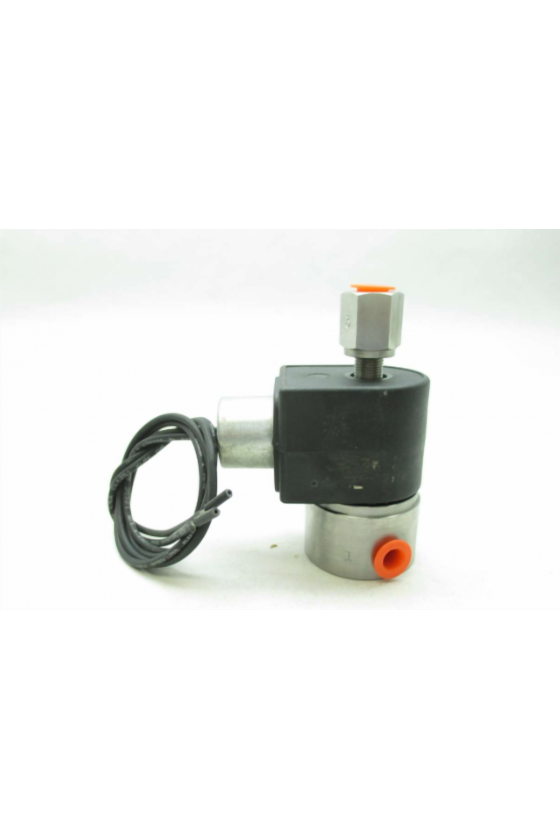

Valvula 3c 1/4 nc orificio 1/8 3/32 0-90 psi
FICHA TECNICA
¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!
Port Size NPT | Orifice Size In. | Flow Factor Cv | Operating Pressure Differential (MOPD) PSI | Watt | Max. Media Temp. °F | Seal | Pressure Vessel Number | Reference | ||||||
In | Exh. | In | Exh. | Min. | Air, Inert Gas | Water | Light Oil | Coil | Valve | |||||
1/4 | 1/8 | 3/32 | 0.230 | 0.170 | 0 | 90 | 90 | 90 | 10 | 185 | NBR | 71315SN2MNJ1 | 7 | B5 |
3-way Direct Acting valves are suitable for low to medium pressure applications that do not require a minimum operating pressure differential. Available in normally open, normally closed and universal operation.
Installation
Valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.
Compatible Fluids
Lubricated Air, Inert Gases, Water, Light Oil (300SSU) and additional fluids compatible with materials of construction. Use of non-lubricated gaseous media can affect valve life.
Coil Classification
Class F Standard, Class H Available
Class B Coils (Std. on A-Series Valves)
Agency Approvals
Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.
Maximum Ambient Temperature
167°F
