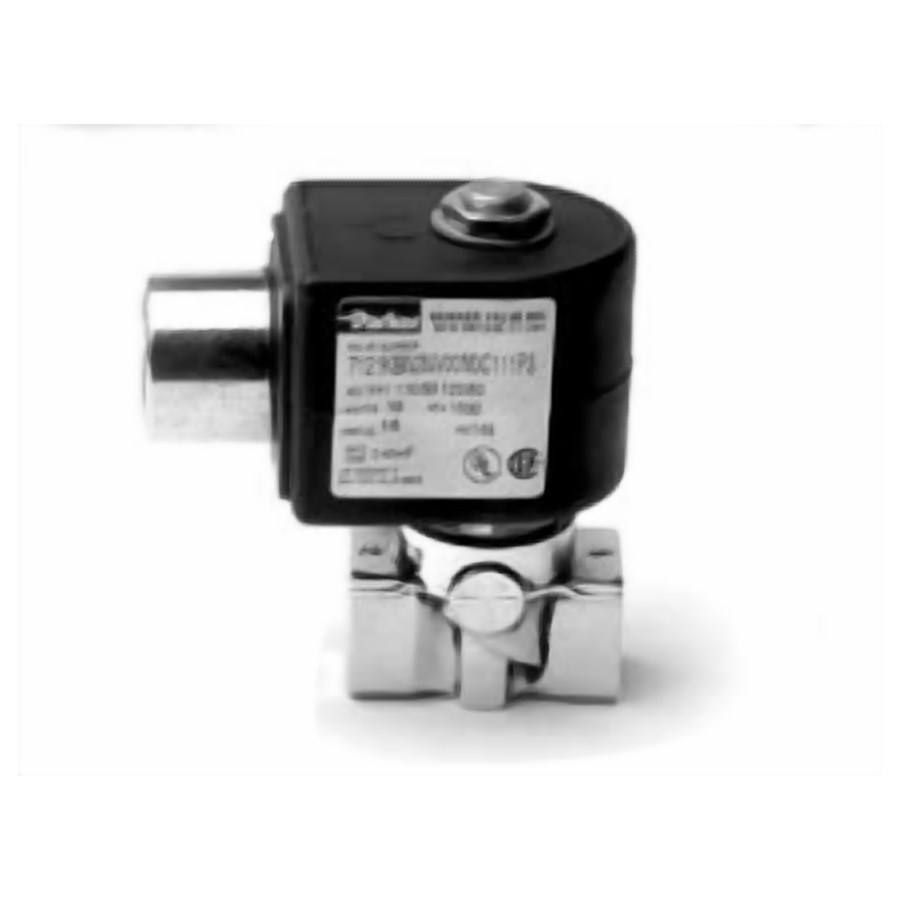

Válvula de 2 vías normalmente abierto de latón de 1/4" NPT con orificio 1/16 0-435 psi 165 grad ss 702 a presión de acción directa.
FICHA TECNICA
Política de seguridad.
El sitio cuenta con certificado de seguridad SSL.
Política de envío
Envíos a toda la República Mexicana
Política de devolución
Nueve días hábiles después de la facturación. Se aplican restricciones*
Pago a meses
Paga a meses mediante tu cuenta de Mercado Pago!!
| Port Size NPT | Orifice Size in. | Flow Factor Cv | Operating Pressure Differential (MOPD) PSI | Watt | Max. Media Temp. °F | Seal | Pressure Vessel Number** | Reference | ||||
| Min. | Air, Inert Gas | Water | Light Oil | Coil | Valve | |||||||
| 1/4 | 1/16 | 0.11 | 0 | 435 | 435 | 435 | 10 | 165 | PCTFE | 7122KBN2GF00 | 7 | A13 |
2-way Direct Acting valves are used in a wide variety of applications that require zero pressure differential and medium to high pressures and flow. These valves are available in a variety of elastomers as well as, brass and stainless construction.
Installation
Valves can be mounted in any position. The preferred orientation is with the coil vertical and upright.
Compatible Fluids
Lubricated Air, Inert Gases, Water and Light Oil (300 SSU). Additional fluids compatible with alternate materials of construction (consult factory). Use of non-lubricated gaseous media can affect valve life.
Coil Classification
Class F standard
Class H available
Agency Approvals
Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.
Maximum Ambient Temperature
150°F
Applications
Válvula de 2 vías normalmente abierto de latón de 1/4" NPT con orificio 1/16 0-435 psi 165 grad ss 702 a presión de acción directa.
