MX2-1/2-FCA FILTRO 1/2, CARBON ACTIVADO SERIE MX

Referencia MX2-1/2-FCA

FILTRO 1/2, CARBON ACTIVADO SERIE MX

MX2-1/2-FCA

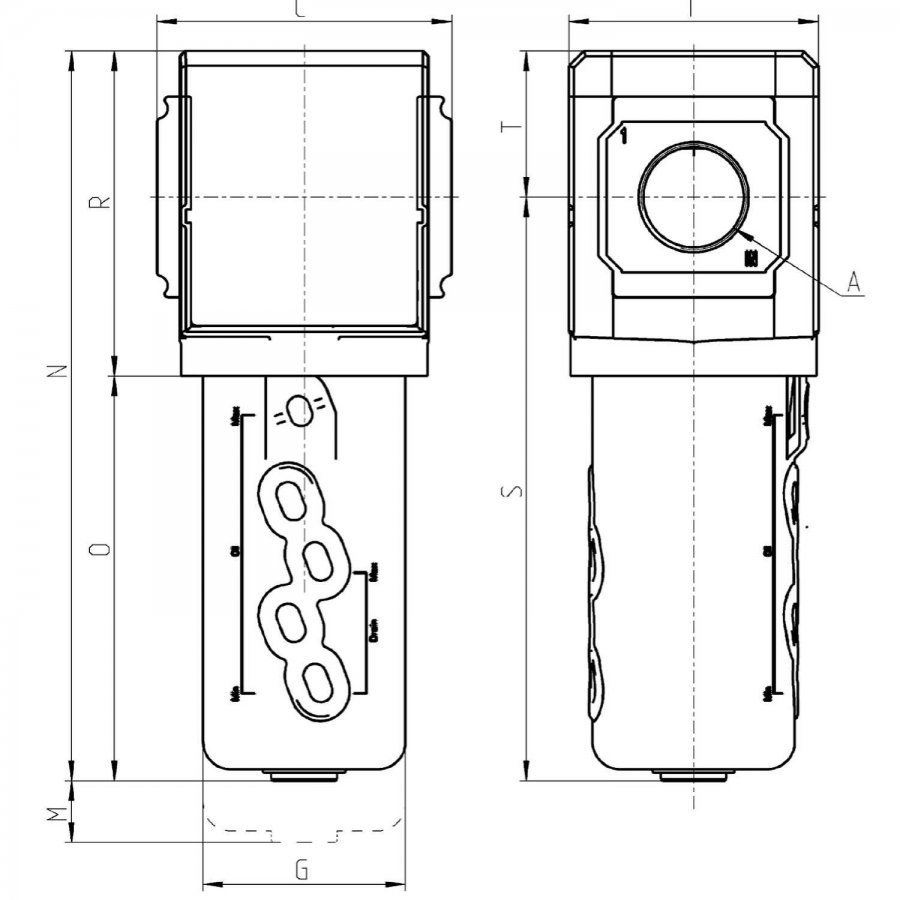

Activated carbon filters Series MX - dimensions

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Code properties

Mod.	A	C	G	I	M	N	O	R	S	T	Weight (Kg)
MX2-1/2-FCA	G1/2	70	55.3	68	89.5	189.5	104.5	85	152	37.5	0.5

Series general data

Construction	modular, compact with activated carbon filtering element
Materials	see TABLE OF MATERIALS on the following page
Ports	MX2: G3/8 - G1/2 - G3/4 MX3: G3/4 - G1
Mounting	vertical in-line wall-mounting (by means of clamps)
Operating temperature	10°C ÷ 40°C (t max = 60°C)
Quality of delivered air according to ISO 8573-1:2010	Class 1.7.1
Draining of condensate	No draining
Operating pressure	0.3 ÷ 16 bar
Nominal flow	see FLOW DIAGRAMS on the following pages
Filtering element	actived carbon
Residual oil content	< 0,003 mg/m³
Fluid	compressed air
Pre-filtering	it is recommended to use a filter with residual oil of 0,01mg/m³
