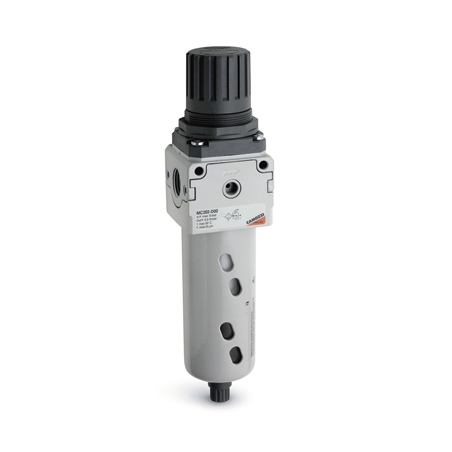

MC202-D03 FILTRO-REGULADOR 1/2PUL

MC202-D03

FILTRO-REGULADOR 1/2",

MC202-D03
Filter-regulators Series MC

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

MC202-D03

Code properties

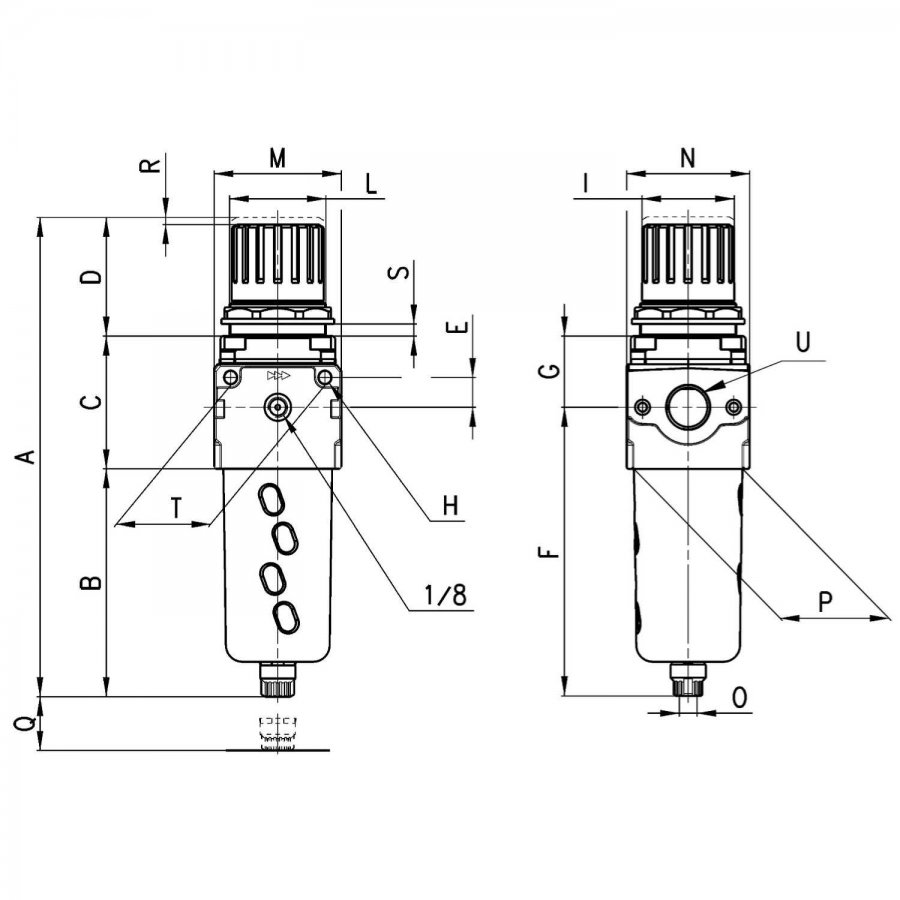

Mod. A B C D E F G H I L M N O P Q R S T U
MC202-D00 256,5 133 64 59 14 162 35 5,5 45 M47x1,5 62 59 G1/8 53 72 3,5 0 ÷ 9 46 G1/2
Series general data

Construction compact modular with filtering element in HDPE
Materials zama, NBR, technopolymer
Ports G1/4 G3/8 G1/2
Condensate capacity cm³ 28 72 72
Weight kg 0,443 0,948 0,928
Mounting vertical in-line or wall-mounting
Operating temperature -5°C ÷ 50°C at 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature)
Quality of delivered air according to ISO 8573-1:2010 Class 6.8.4 with 5μm filtering element Class 7.8.4 with 25μm filtering element
Draining of condensate semi-automatic manual (standard), automatic, with depressurisation, protected depressurisation, without drain with port G1/8
Finishing enamelled
Inlet pressure with standard drain and protected depressurisation 0,3 ÷ 16 bar with depressurisation 0,3 ÷ 10 bar with automatic drain 1,5 ÷ 12 bar for G3/8 and G1/2
Outlet pressure 0.5 ÷ 10 bar(standard), 0 ÷ 2 bar; 0 ÷ 4 bar e 0.5 ÷ 7 bar
Nominal flow see FLOW DIAGRAMS on the following pages
Fluid compressed air
