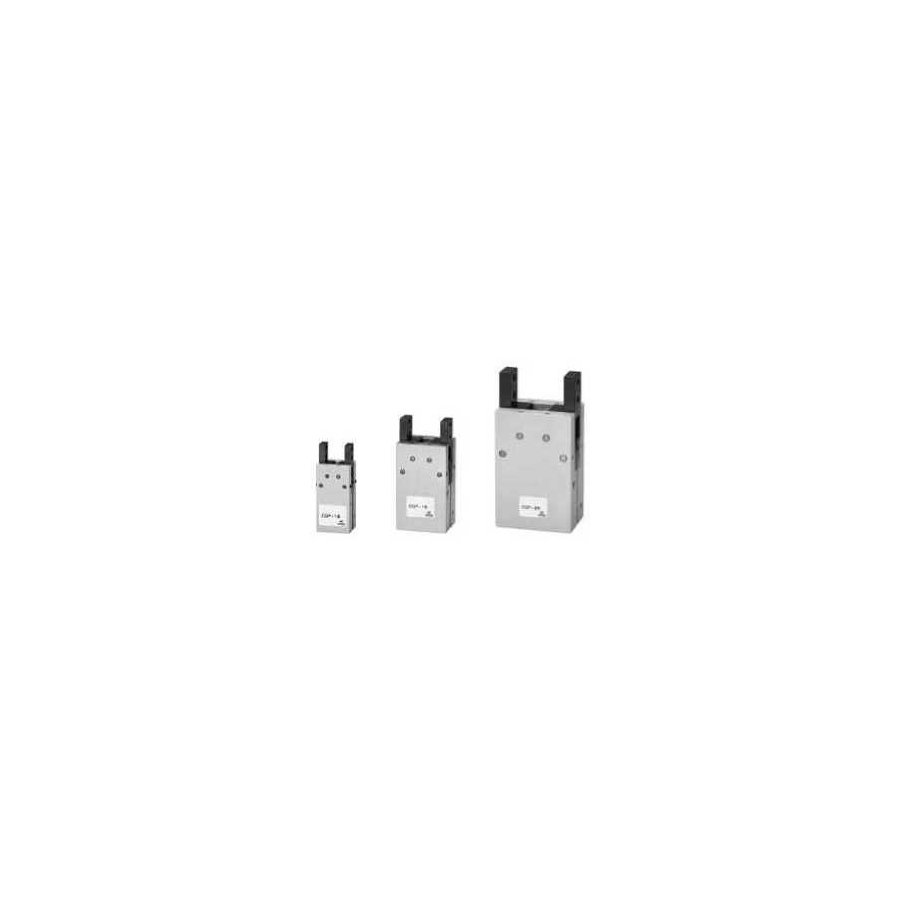

IMAGEN DE REFERENCIA

  • Sobre pedido

CGP-16 PINZA NEUMATICA PARALELA

0 Reseñas(s)
CGP-16

PINZA NEUMATICA PARALELA

CGP-16
Parallel grippers Series CGP

Envio

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

CAMOZZI
Cotizar
Series general data

Model CGP-10 CGP-16 CGP-20 CGP-25 CGP-32
Bore sizes (mm) Ø 10 Ø 16 Ø 20 Ø 25 Ø 32
Type of operation double-acting
Operating pressure 1.5 ÷ 7 bar
Operating temperature 0°C ÷ 80°C
Max. operating frequency 180 cycles/min
Lubrication lever section - lubrication required on sliding section
Opening stroke (mm) Ø 10 = 4 Ø 16 = 8 Ø 20 = 12 Ø 25 = 14 Ø 32 =16
Theoritical holding force - opening (N) Ø 10 = 8 Ø 16 = 24 Ø 20 = 47 Ø 25 = 75 Ø 32 = 100 P = Related to a pressure of 5 bar with gripping point length 3 cm
Theoritical holding force - closing (N) Ø 10 = 5 Ø 16 = 8 Ø 25 = 35 Ø 25 = 60 Ø 32 = 85 P = Related to a pressure of 5 bar with gripping point length 3 cm
Length of max gripping point L (cm) 3,0 4,0 6,0 7,0 8,5 L = Related to a pressure of 5 bar
Weight(g) Ø 10 = 50 Ø 16 = 140 Ø 20 = 250 Ø 25 = 410 Ø 32 = 680
Port sizes M5 (CGP-10 M3)
Fluid filtered air, without lubrication. In case lubricated air is used, it is recommended to use oil ISO VG32. Once applied, the lubrication should never be interrupted.
