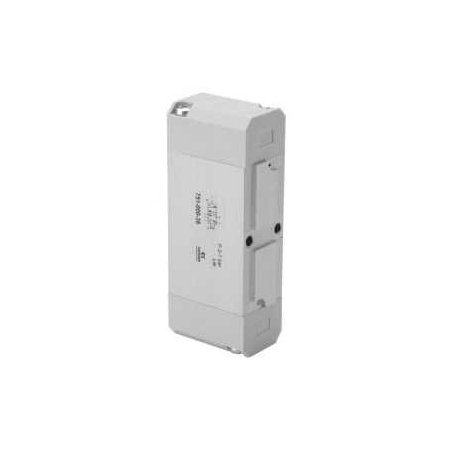

751-000-36 VALVULA 5/2, ISO26mm, MONOESTABLE

Referencia 751-000-36

VALVULA 5/2, ISO26mm, MONOESTABLE

751-000-36
5/2-way solenoid valves ISO 26 mm - 18 mm, monostable

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

Series general data

Construction	balanced spool type
Valve functions	5/2 - 5/3-way CC CO CP
Materials	AL body, spool base, polyamide endcovers, NBR seals
Mounting	by means of screws on the base
Ports	on sub-base
Operating temperature	0° C min. +50° C max
Fluid	filtered air (5 micron or less), without lubrication. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted.
Size	26 mm 18 mm
Installation	in any position
Operating pressure	P. max 7 bar
Nominal pressure	6 bar
Nominal flow	Qn Size 26 mm = 900 Nl/min Qn Size 18 mm = 450 Nl/min
Voltage	see coding
Voltage tolerance	± 10%
Power consumption	2W
Class of insulation	class F
Protection	IP54 (IP65 with connector DIN 40050)
