27M2A32A0050 CILINDRO D.E. MAGNETICO REDONDO

Referencia 27M2A32A0050

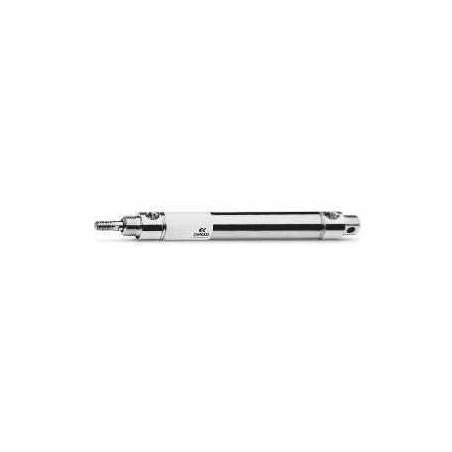

CILINDRO D.E. MAGNETICO REDONDO

27M2A32A0050

Cylinders Series 27 (Ø 20, 25, 32, 40)

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

27M2A32A0050

Series general data

Type of construction	flanged
Operation	double acting
Materials	rod: Ø20 - 25 stainless steel AISI 303 - Ø32 ÷ 63 stainless steel AISI 420B tube: INOX AISI 304 piston and rod seals = PU
Mounting	feet - trunnion - steel bar - pins
Strokes min-max	all diameters 10 - 1000 mm
Bores	ø 20, 25, 32, 40, 50, 63
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Operating pressure	1 ÷ 10 bar
Speed	10 ÷ 1000 mm/sec (no load)
Fluid	filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
