14N1M16B10 MINICILINDRO S.E, VAST ROSCADO, CON-

Referencia 14N1M16B10

MINICILINDRO S.E, VAST ROSCADO, CON-

14N1M16B10

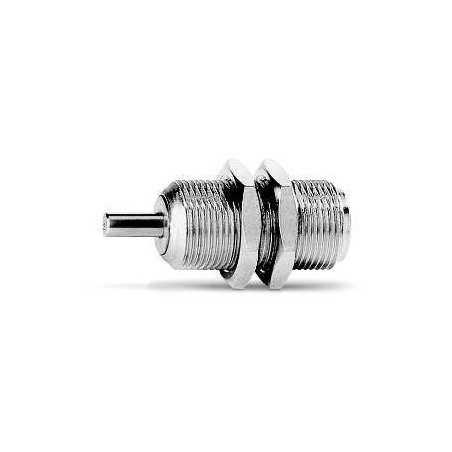

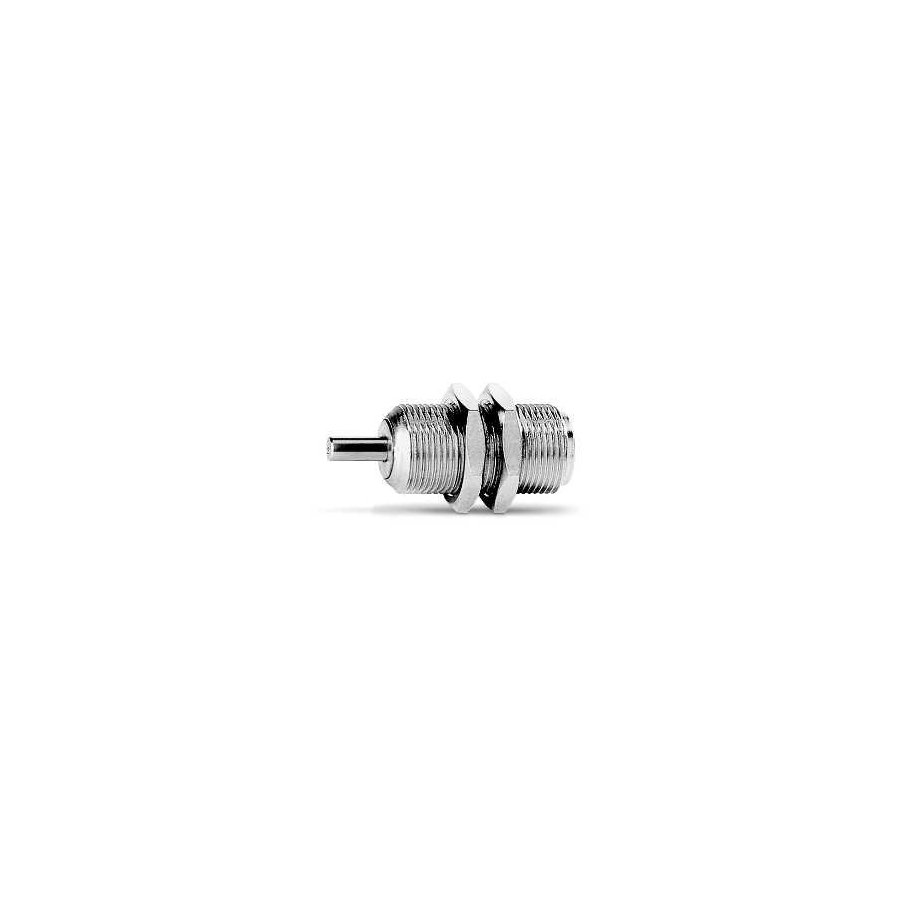

Compact minicylinders with non threaded piston rod Mod. 14N1M

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

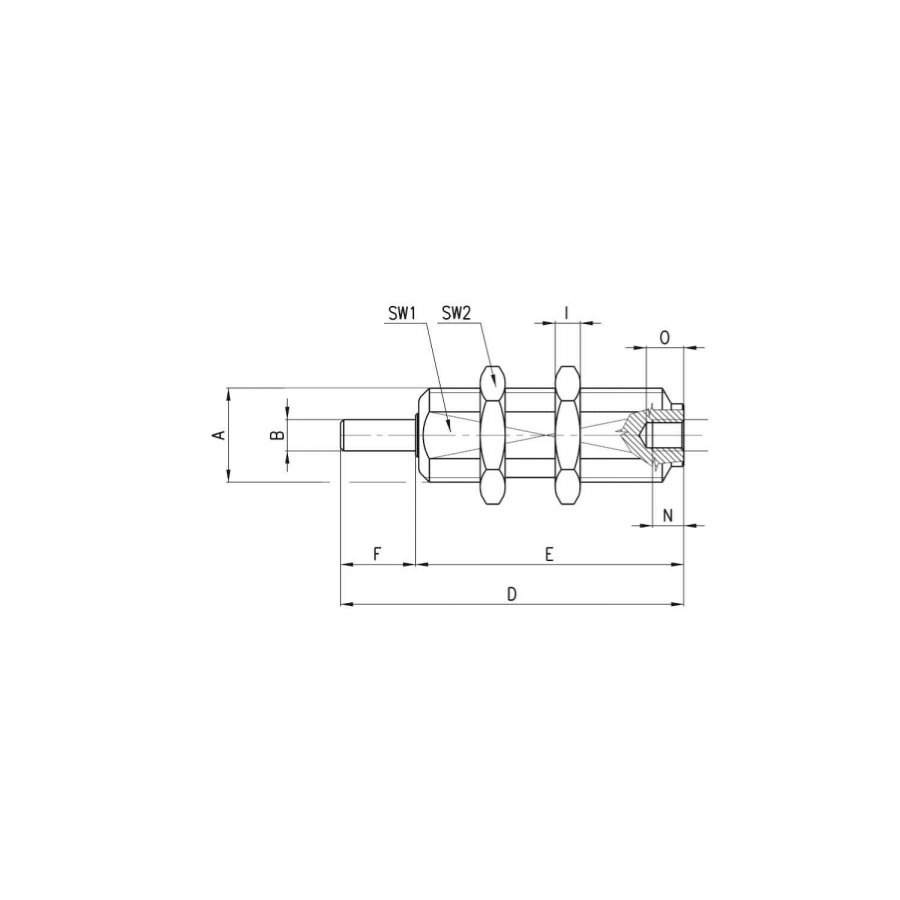

Code properties

Mod.

STROKE

SW1

SW2

14N1M16B10

M22x1,5

55,5

41,5

M5x0,8

Series general data

Type of construction	compact, non magnetic
Operation	single-acting
Materials	body = brass seals = NBR other = stainless steel
Operating pressure	P. min 2,5 bar - P. max 8 bar
Operating temperature	0°C ÷ 80°C (with dry air - 20°C)
Fluid	clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Bore	ø 6, 10, 16
Stroke	see table
Mounting method	by means of threaded body
