IMAGEN DE REFERENCIA

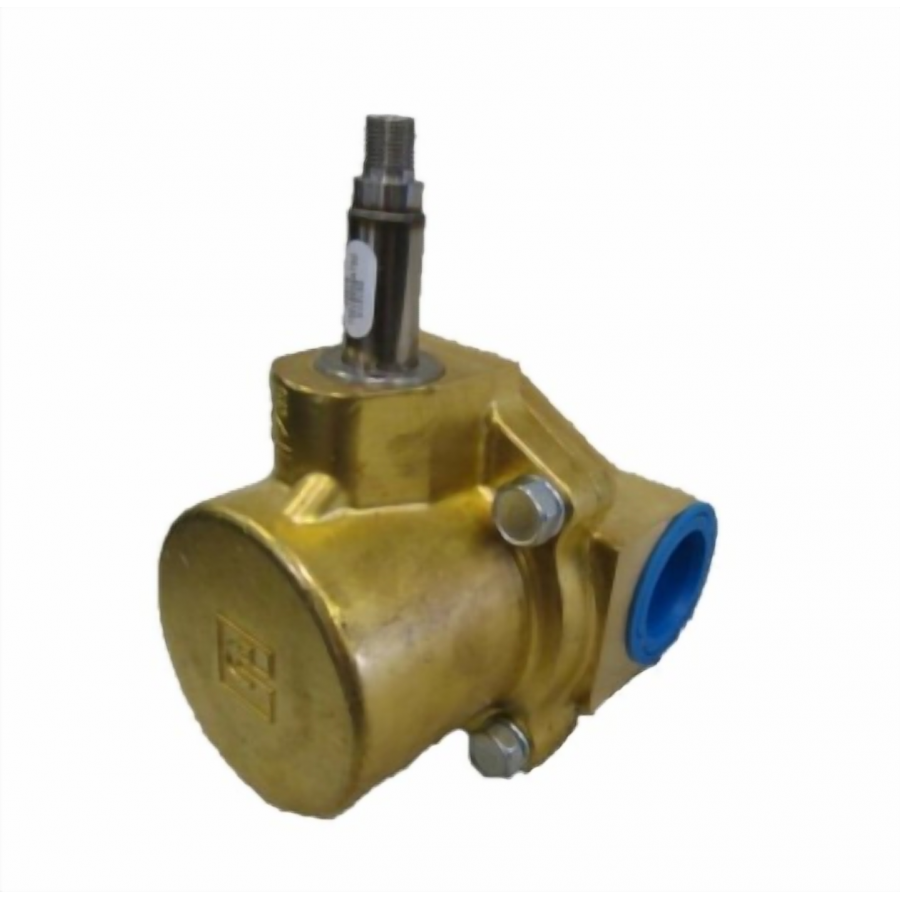

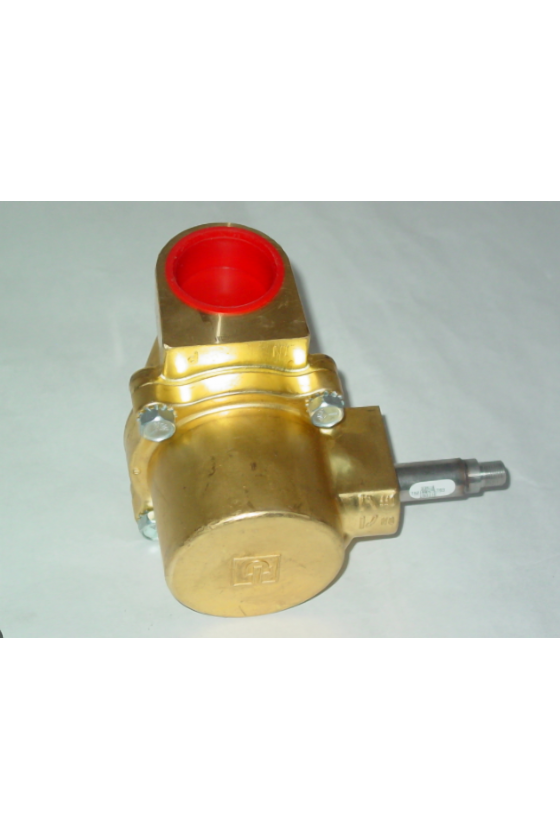

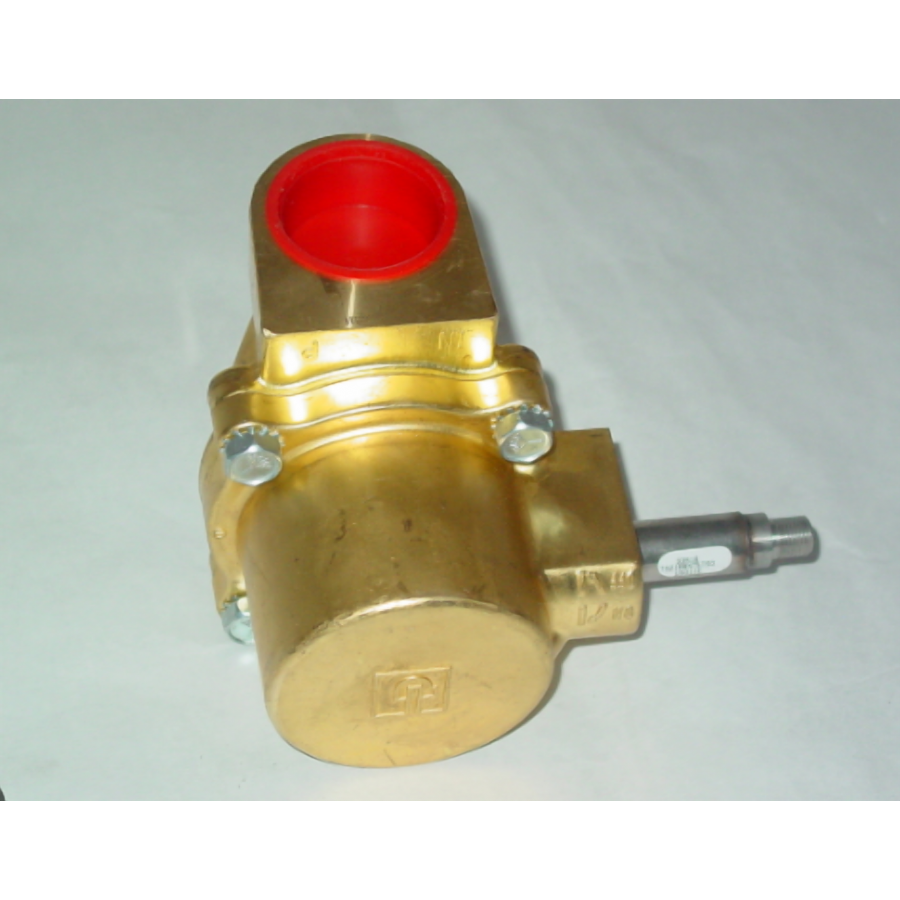

73218BN75TS0 Válvula de 2 vías normalmente cerrado de latón de 1 1/4" NPT con orificio de 1 1/8

Referencia 73218BN75TS0

* Bobina y/o accesorios no incluidos

Valvula 1 1/4 orif 1 1/8 5-125psi 353 grad f vapor 180C 7 2 v nv 73218BN75TS0 Válvula de 2 vías normalmente cerrado de latón de 1 1/4" NPT con orificio de 1 1/8 5-125psi 353 grados clase f para vapor a presión con suministro de piloto interno operado por piloto.

FICHA TECNICA

¿Necesitas certificado de calibración?, ¡pregunta a tu vendedor favorito vía WhatsApp!

73218BN75TS0

Cotizar

Descripción
Reseñas (0)

Port Size NPT	Orifice Size in.	Flow Factor Cv	Operating Pressure Differential (MOPD) PSI			Watt	Max. Media Temp. °F	Seal***	Pressure Vessel Number**	Reference
			Min.	Hot Water	Steam					Coil	Valve
1 1/4	1 1/8	16.00	5	-	125	10	210	PTFE	73218BN75TS0*	7	D17

2-Way Hot Water and Steam valves are specifically designed to withstand harsh application conditions. Many designs include integral stainless steel main and pilot orifices.

Installation

Valves should be mounted vertical and upright.

Compatible Fluids

Ideal for the control of hot water and steam in a variety of applications.

Coil Classification

Class F Standard
Class H Standard for media temperatures over 297°F

Agency Approvals

Standard valves with NEMA 4X or explosion proof solenoid enclosures are UL Listed and CSA Certified. For additional details, consult factory.

Maximum Ambient Temperature

150° F
